ShopKVM SwitchesStarTech.com Long Range USB VGA KVM Console Extender over Cat5 UTP - 1000 ft
StarTech.com Long Range USB VGA KVM Console Extender over Cat5 UTP - 1000 ft
View 1
View 2
View 3
View 4
View 5

StarTech.com Long Range USB VGA KVM Console Extender over Cat5 UTP - 1000 ft

£304.19

£365.03 inc. VAT

Out of Stock(0)MPN: SV565UTPUL
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com Long Range 1000 ft USB VGA KVM Over CAT5/5e CAT6 UTP Extender
KVM Console Over Ethernet for multiple servers/PC's IT Grade (SV565UTPUL)
KVM extender
over CAT 5/5e
up to 300 m
for P/N: IM12D1500P, SV1631DUSBUK, SV831DUSBUK, SVA12M2NEUA, SVA12M5NA, SVECONUS15, SVECONUS6

Product Overview

AI-generated summary

If you’ve got a server, office PC, or lab kit sitting somewhere you can’t easily run a proper video/USB cable to, this StarTech long-range KVM console extender is exactly the kind of boring-but-useful purchase that saves time. £304.68 ex-VAT for ~1,000ft class reach is fair in the “less faff than relocating gear” sense, especially for UK sites where you can often reuse existing Cat5/UTP runs. The big win is workflow: you get a proper remote console setup (monitor/keyboard/mouse) without relying on flaky remote-desktop/VNC for anything that needs real-time input.

That said, I wouldn’t buy it if you need ultra-fancy graphics or “set-and-forget” plug-and-play across random cabling quality. Extenders like this live and die by your network cable run quality and termination—long distances plus marginal Cat5 can turn into intermittent weirdness (especially with higher-resolution/refresh expectations). Also, if you’re thinking “this is a KVM switch,” it’s more like an extender/link—great for a fixed point-to-point console, not for dynamic multi-user switching. Bottom line: buy it if your use case is straightforward (one console to one remote machine over good copper), and skip it if you need flexible routing or you can’t guarantee the cabling is up to scratch.

Specifications

Features

TypeTransmitter & Receiver
Connectivity technologyWired
Maximum transfer distance300 m
Rack mountingN
Maximum analog resolution1920 x 1200 pixels

Transmitter

Transmitter video port typeVGA
Transmitter local keyboard/mouse port typeUSB

Receiver

Receiver local video port typeVGA
Receiver local keyboard/mouse port typeUSB

Power

AC input voltage110-240 V
AC adapter output voltage12 V
AC adapter output current1.5 A

Weight & dimensions

Transmitter width157 mm
Transmitter depth70 mm
Transmitter height20 mm
Transmitter weight1500 g
Receiver width157 mm

Packaging data

Package width197 mm
Package depth294 mm
Package height72 mm
Package weight1371 g

Packaging content

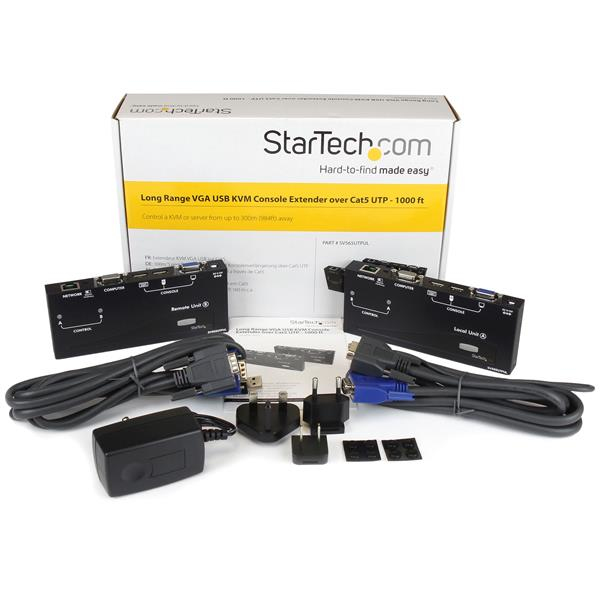

Cables includedKVM,USB,VGA
ManualY

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80 %
