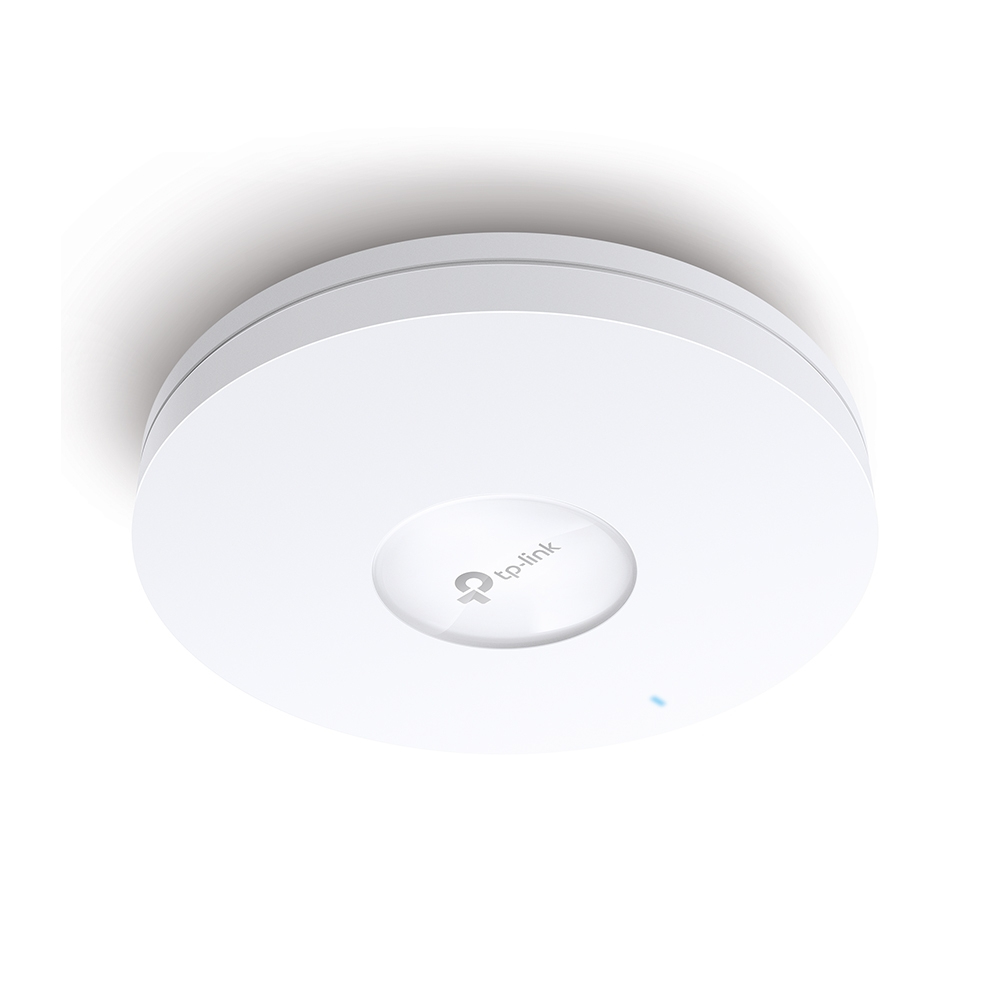

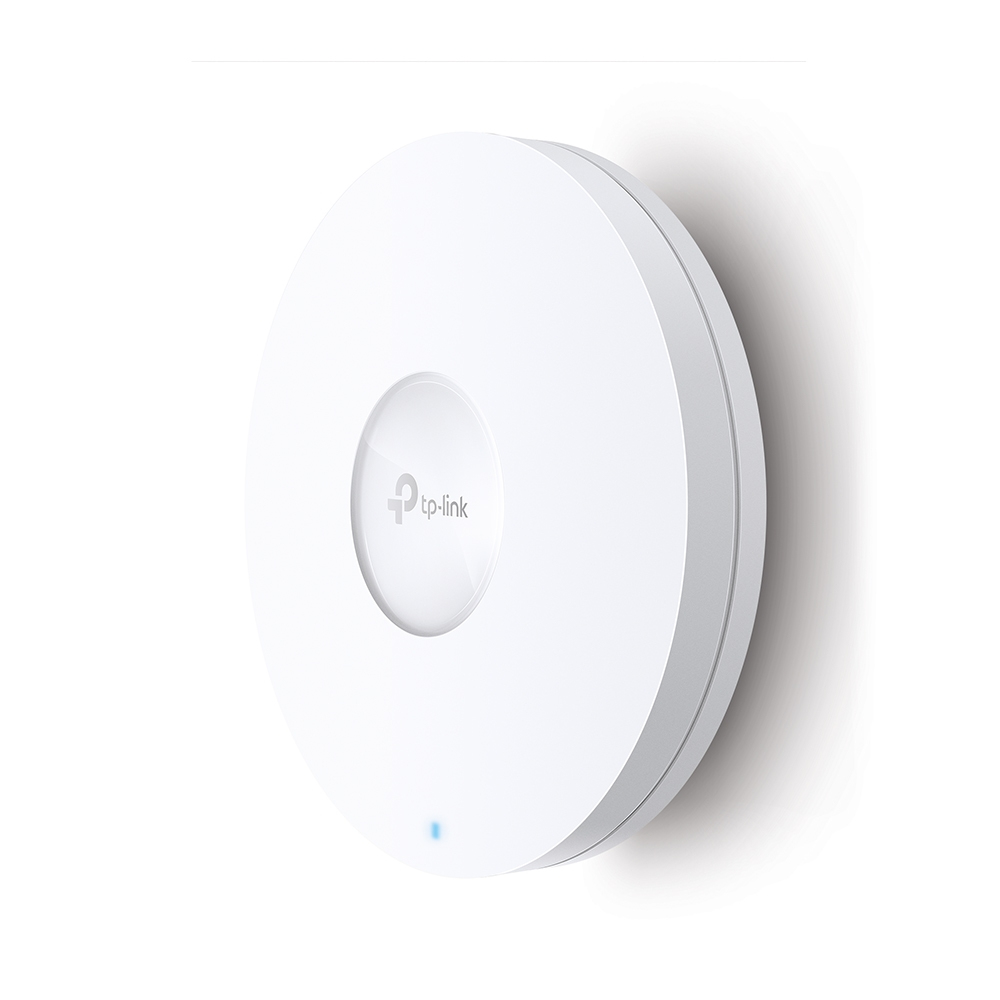

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point
View 1
View 2
View 3
View 4
View 5
View 6

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point

£132.71

£159.25 inc. VAT

Out of Stock(0)MPN: EAP670NEW
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

TP-Link Omada EAP670 V2
Radio access point
Wi-Fi 6
2.4 GHz, 5 GHz
cloud-managed
wall / ceiling mountable

Product Overview

AI-generated summary

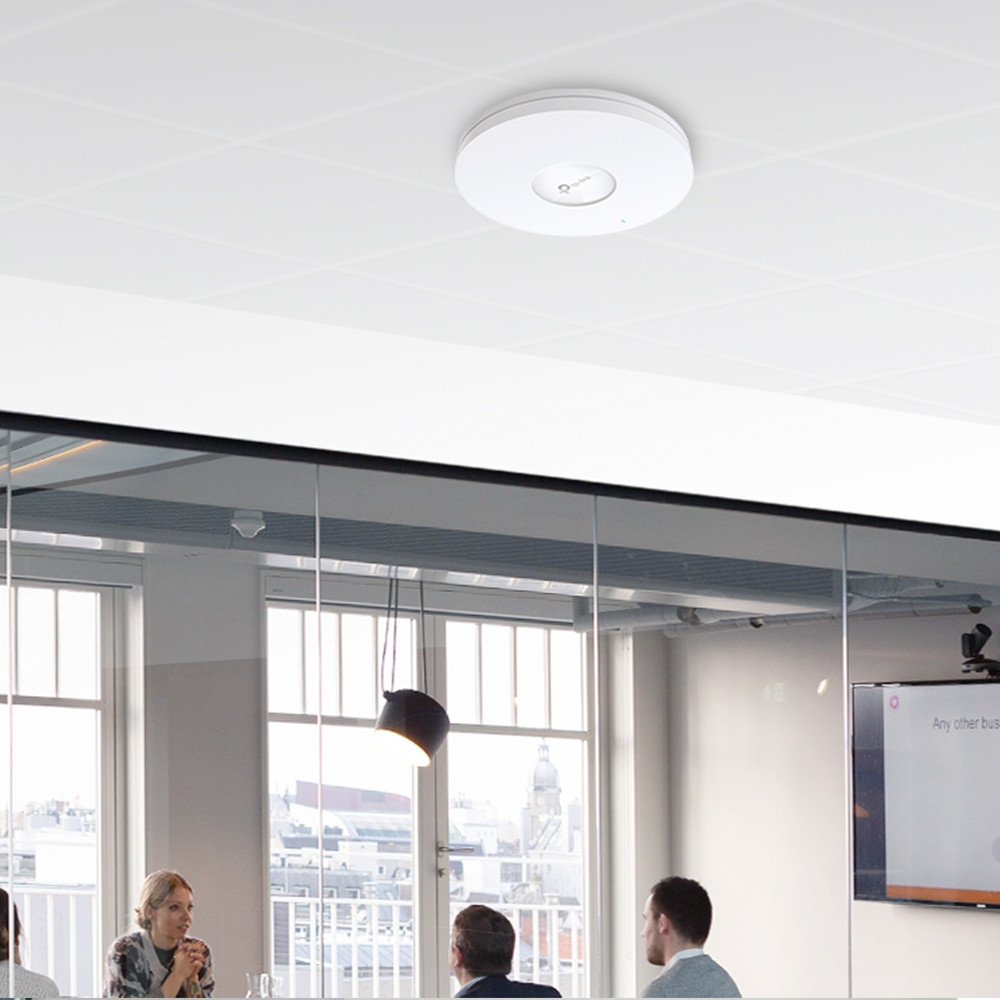

The TP-Link Omada AX5400 Ceiling Mount Wi‑Fi 6 AP is the kind of “sane default” I’d recommend if you’re equipping a small office, retail unit, studio, or light warehouse and you want something that just works without turning into a project. £132.53 ex‑VAT is strong value for a Wi‑Fi 6 ceiling-mount unit in the Omada ecosystem, especially if you’re already using (or willing to use) Omada for management. In day-to-day terms, the ceiling placement is the right choice for giving more even coverage than you’d get from a single desktop/router box, and the Omada controller experience is typically far less fiddly than vendor-matched “cloud” setups.

That said, I wouldn’t buy it if you need simple standalone Wi‑Fi and zero controller involvement, or if you’re expecting it to magically erase coverage issues caused by building layout and RF interference—AP location still matters more than marketing numbers. Also, if you’re trying to cover multiple floors or a very split-plan site, you’ll usually get better results by planning multiple APs rather than relying on one unit. If you tell me your approximate square metres and wall/ceiling type (and whether you’ve got an Omada controller already), I can sanity-check whether this is a one‑AP job or whether you should budget for more.

Specifications

Features

2.4 GHzY
5 GHzY
6 GHzN
Maximum data transfer rate5400 Mbit/s
Maximum data transfer rate (2.4 GHz)574 Mbit/s

Security

Service Set Identifier (SSID) featuresMultiple SSIDs
Number of SSID supported16
Remote Authentication Dial-In User Service (RADIUS)Y
Access Control List (ACL)Y

Management features

Web-based managementY
Firmware upgradeableY

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackY

Power

Power over Ethernet (PoE)Y
Input current1.5 A

Design

PlacementCeiling,Wall
Product colourWhite
International Protection (IP) codeIP67
Reset buttonY
LED indicatorsY

Antenna

Antenna typeInternal
Antenna direction typeOmni-directional
Antennas quantity6
Antenna gain level (max)5 dBi

Certificates

CertificationCE, FCC, RoHS
