ShopNIC & Network AdaptersStarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux
StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux
View 1

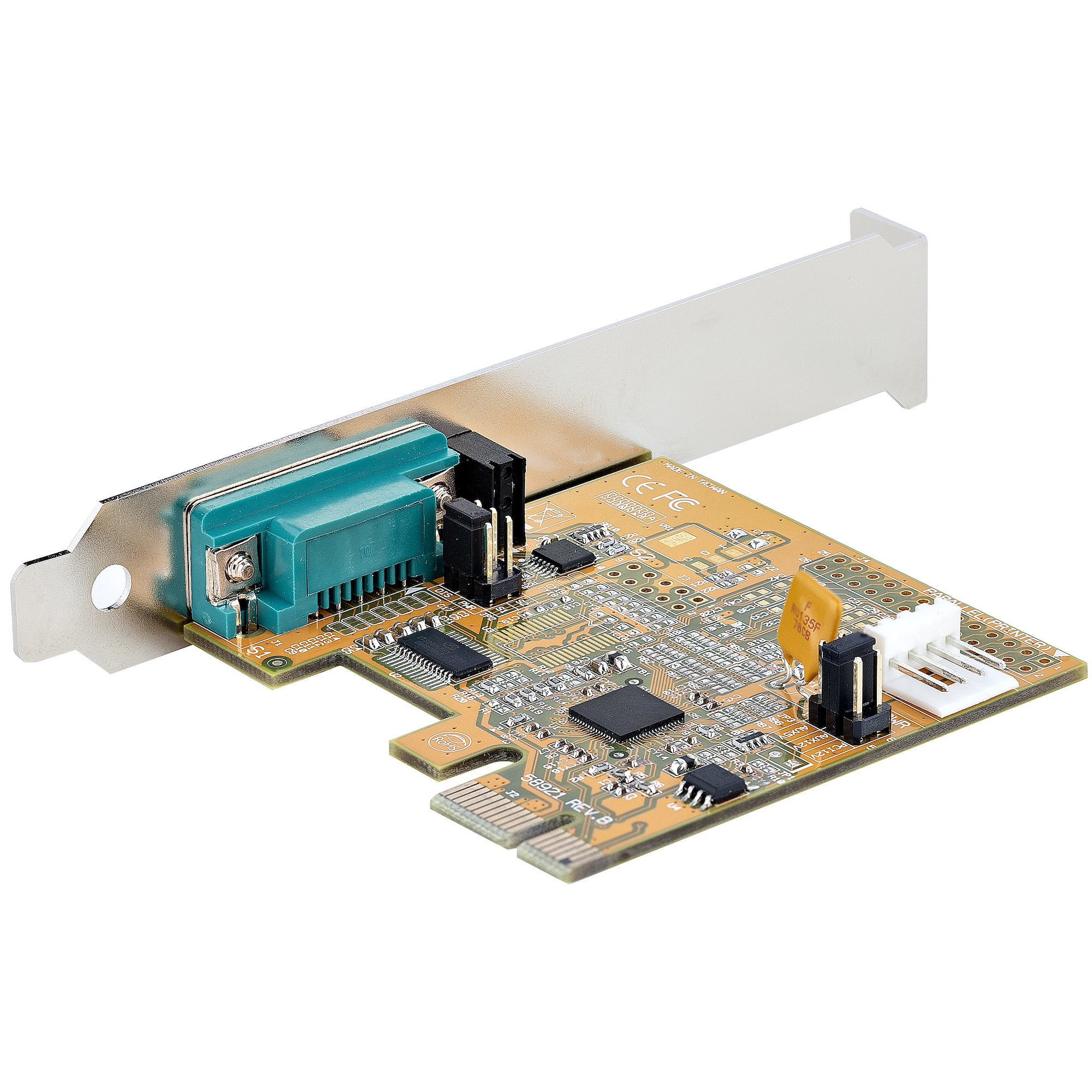

View 2

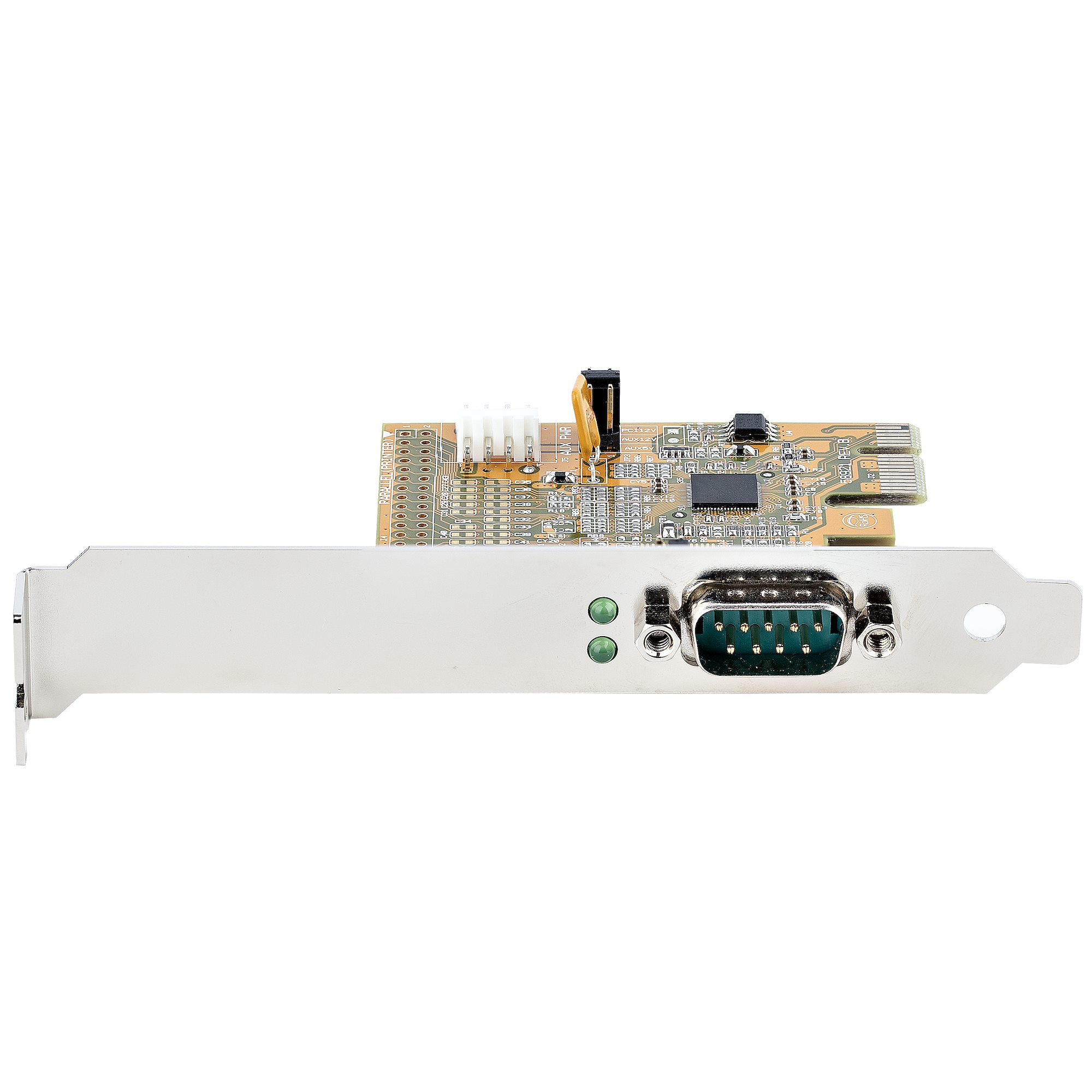

View 3

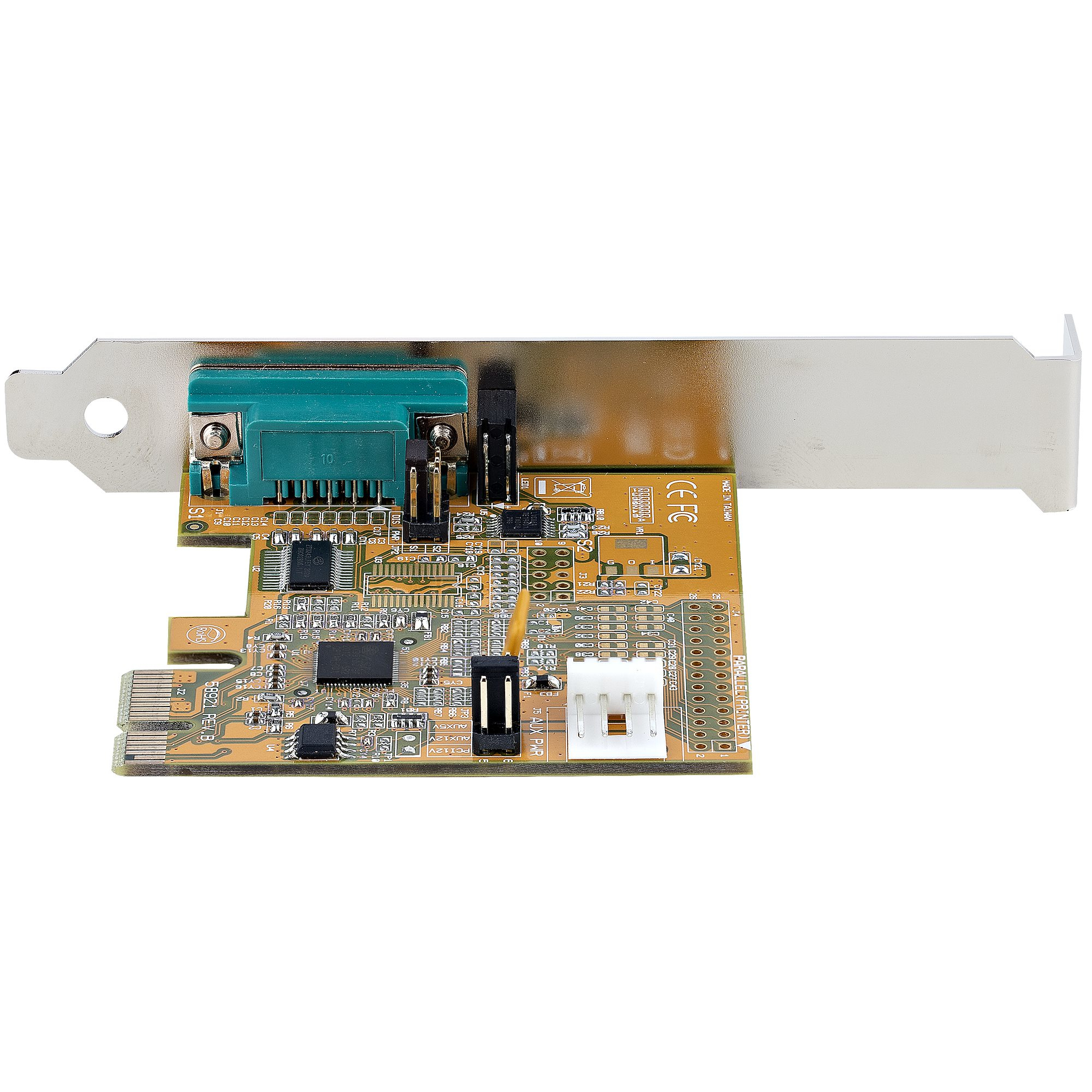

View 4

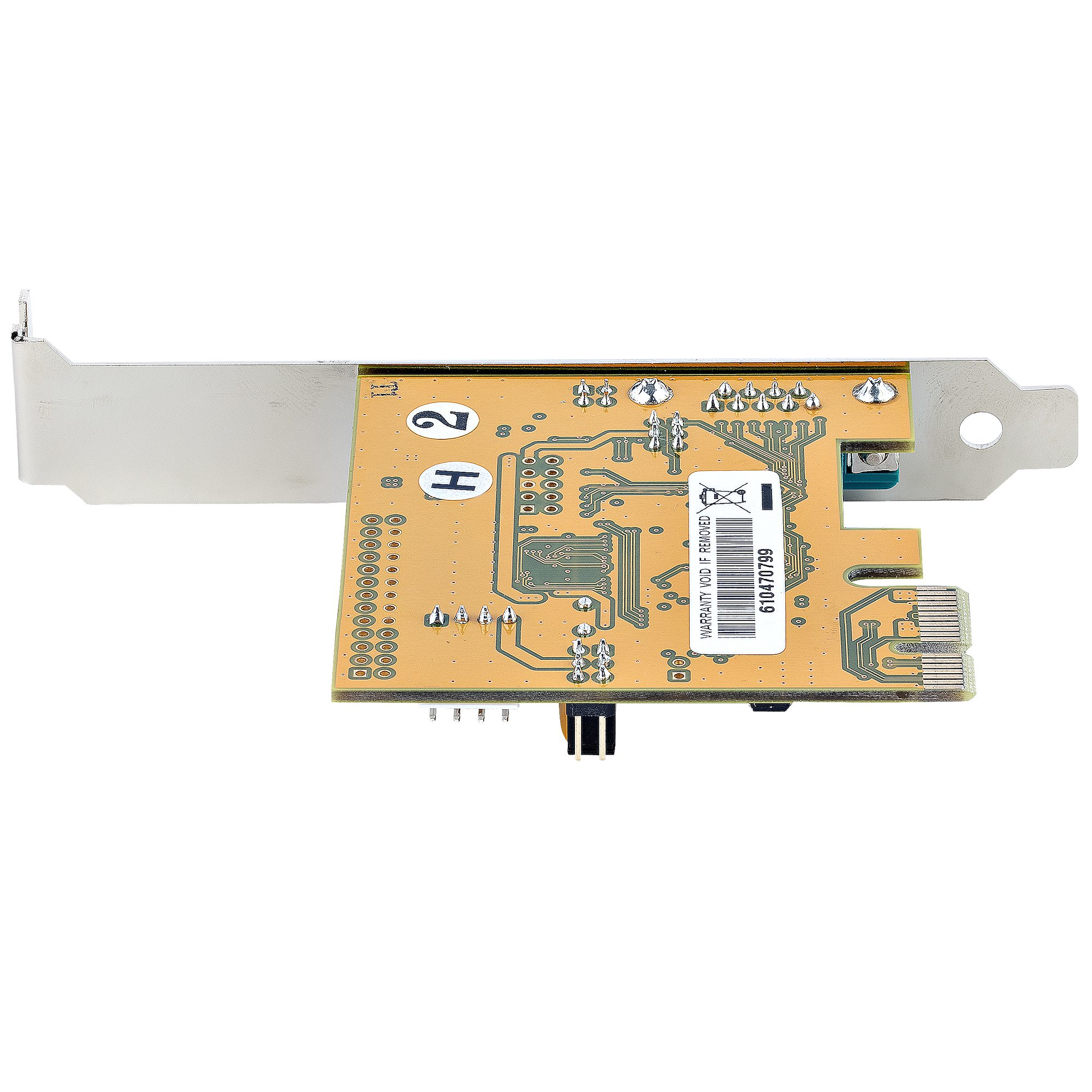

View 5

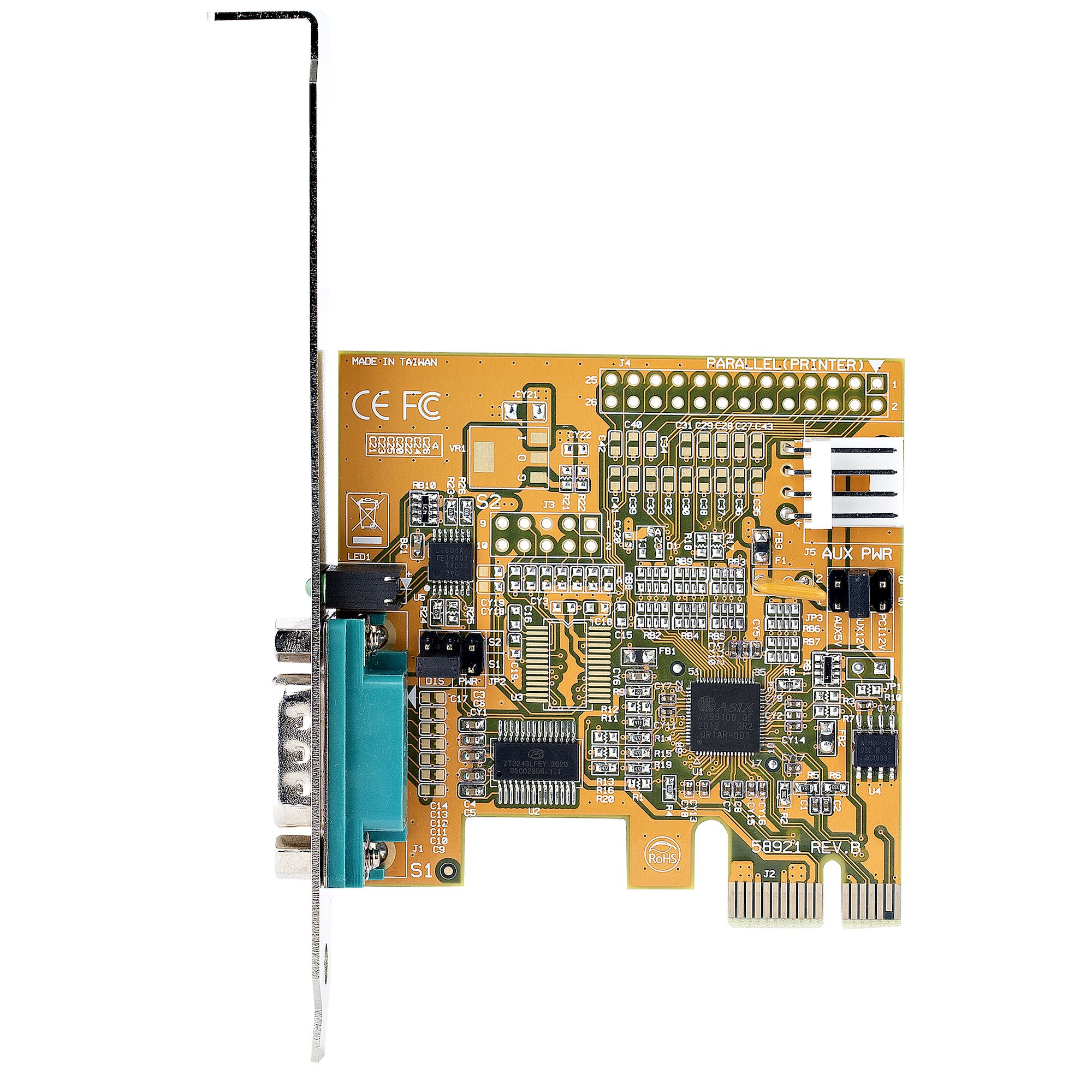

View 6

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card w/ 16C1050 UART, Standard or Low Profile Brackets, COM Retention, Windows & Linux

£39.47

£47.36 inc. VAT

Low Stock(2)MPN: 11050-PC-SERIAL-CARD
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card with 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux
PCIe to DB9 Card (11050-PC-SERIAL-CARD)
Serial adapter
PCIe 2.0 low profile
RS-232 x 1
yellow

Product Overview

AI-generated summary

For £39.52 ex‑VAT, this is the kind of no-drama “add a couple of legacy serial ports” card that’s actually worth keeping in the spares cupboard. It’s a sensible fit when you’ve got kit that only speaks RS232—routers, industrial controllers, weigh scales, older POS/automation bits—and you don’t want to pay for a fancy gateway or replace hardware. StarTech tends to be pretty reliable in the UK B2B channel, and the presence of both standard/low-profile mounting plus COM retention is exactly what saves time in the real world when you’re not trying to remap ports every time a server gets rebuilt.

That said, I’d only buy it if RS232 is truly what you need. If the devices are expecting something else (RS422/RS485, or USB serial that’s been swapped in by another installer), you’ll waste time. Also, for “mission critical” serial polling at high throughput, you should sanity-check whether the environment is noisy and whether you need proper grounding/serial cabling practices—serial is often more about installation quality than the card. Otherwise, it’s a good value, straightforward way to add serial capability to a Windows or Linux box, and it’s especially suitable for SMBs and IT teams supporting mixed legacy estates.

Specifications

Ports & interfaces

Host interfacePCIe
Output interfaceSerial
Expansion card form factorFull-height / Low-profile
Expansion card standardPCIe 2.0
Serial ports quantity1

Design

InternalY
Product colourYellow
LED indicatorsActivity

Features

ChipsetASIX - AX99100, ASIX - ZT3243LFEY
Baud rate921.6 Kbit/s
FIFO (First In, First Out)256 B
Data bits5,6,7,8,9
Flow control supportY

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95 %

System requirements

Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Linux operating systems supportedY
Server operating systems supportedWindows Server 2016,Windows Server 2019

Technical details

Compliance certificatesCE,RoHS

Weight & dimensions

Width65 mm
Depth67 mm
Height18 mm
Weight42 g

Packaging data

Mounting brackets includedY
Quick installation guideY
Package width207 mm
Package depth144 mm
Package height38 mm
