StarTech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall

£611.62

£733.94 inc. VAT

Low Stock(2)MPN: VS424HDPIP
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall
4x4 Matrix Switch with Video Combining (VS424HDPIP)
Video/audio switch
desktop
for P/N: SVA12M5NA

Product Overview

AI-generated summary

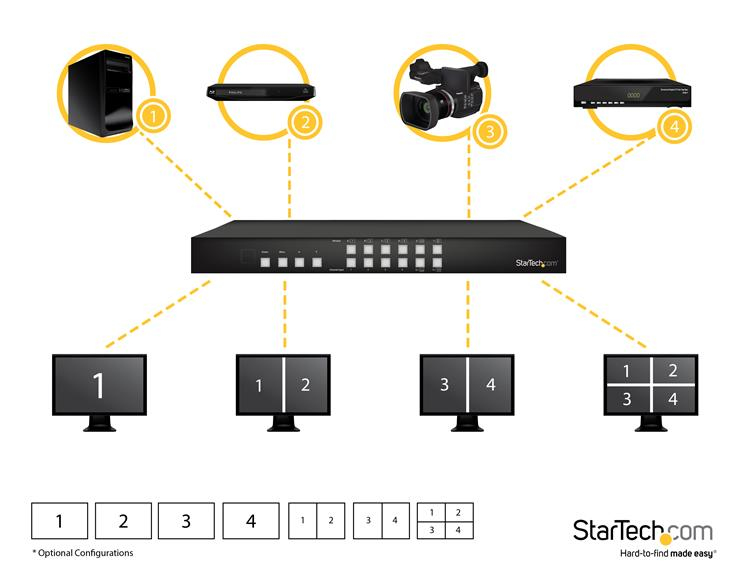

For £611.60 ex-VAT, this StarTech 4x4 HDMI matrix is the kind of kit you buy when you genuinely need routing flexibility, not when you just need “a few screens.” A 4x4 matrix pays off in control rooms, meeting spaces with multiple sources, training suites, or any setup where PCs, cameras, and playback devices all need to be redistributed on demand—sometimes even with multiple people watching different things at once (the picture-in-picture / multiview angle). If you’ve got the cable runs and the requirement to switch centrally, it’s a sensible, workmanlike choice: StarTech tends to be practical and support-friendly for UK resellers/integrators.

That said, I wouldn’t buy it if your use case is simple or mostly static—like “one source to one display” or occasional manual switching with only two or three endpoints. In those cases, you’ll usually get better value and less fuss from simpler switchers/splitters, and you’ll avoid the overhead of matrix operation. Also, because HDMI matrices live or die by real-world signal behaviour, make sure you’ve thought through your sources/displays’ compatibility and cable lengths before committing—HDMI switching quirks are the main reason these products become support tickets. Bottom line: buy it if you need real routing + multiview behaviour; skip it if you don’t, because the cost buys capability you may never use.

Specifications

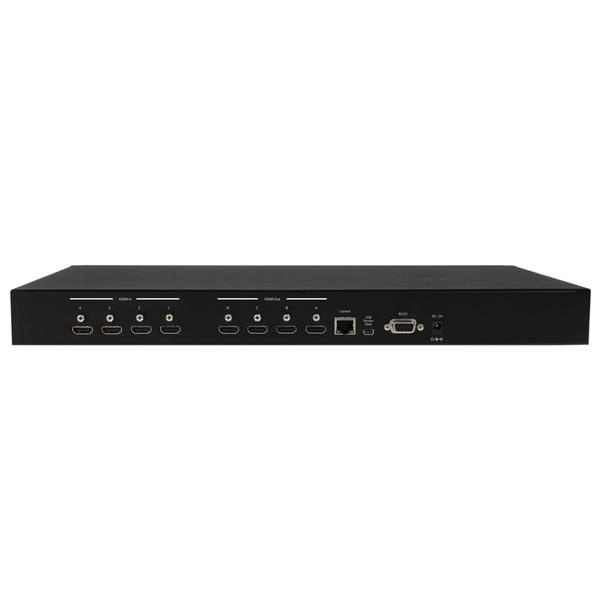

Ports & interfaces

Video port typeHDMI
HDMI ports quantity8
HDMI in4
Number of HDMI outputs4
RJ-45 input ports1

Features

MaterialAluminium
Product colourBlack
Supported graphics resolutions1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),640 x 480 (VGA)
Supported video modes1080p,720p
LED indicatorsY

Power

AC adapter input voltage100 - 240 V
AC adapter input current1 A
AC adapter output voltage12 V
AC adapter output current3 A

Certificates

CertificationCE, FCC, TAA

Weight & dimensions

Width250 mm
Depth436 mm
Height49 mm
Weight2800 g
Dimensions (WxDxH)250 x 436 x 49 mm

Packaging data

Package width412 mm
Package depth575 mm
Package height142 mm
Package weight4300 g

Packaging content

Remote control includedY
ManualY
AC adapter includedY
Software CDY

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90 %
