ShopRacking & CabinetsStarTech.com 4U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20kg Weight Capacity, Black
StarTech.com 4U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20kg Weight Capacity, Black
View 1
View 2
View 3
View 4
View 5
View 6

StarTech.com 4U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20kg Weight Capacity, Black

£46.20

£55.44 inc. VAT

Out of Stock(0)MPN: WALLMOUNT4
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

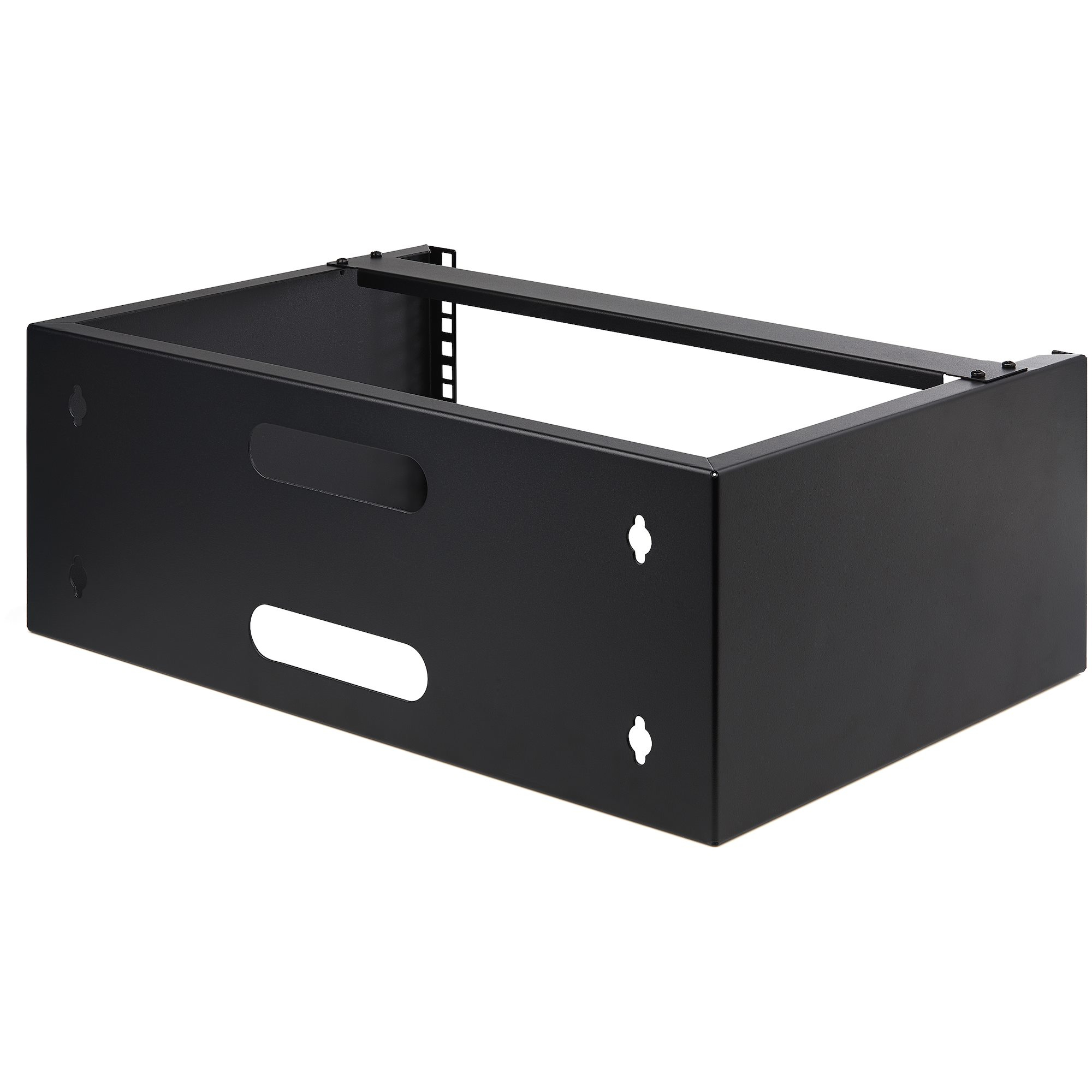

StarTech.com 4U Wall Mount Rack, 19" Wall Mount Network Rack, 13.78 inch Deep (Low Profile), Wall Mounting Patch Panel Bracket for Network Switches, IT Equipment, 44lb (20kg) Capacity
Network Equipment Rack (WALLMOUNT4)
Network device mounting bracket
wall mountable
4U
19"

Product Overview

AI-generated summary

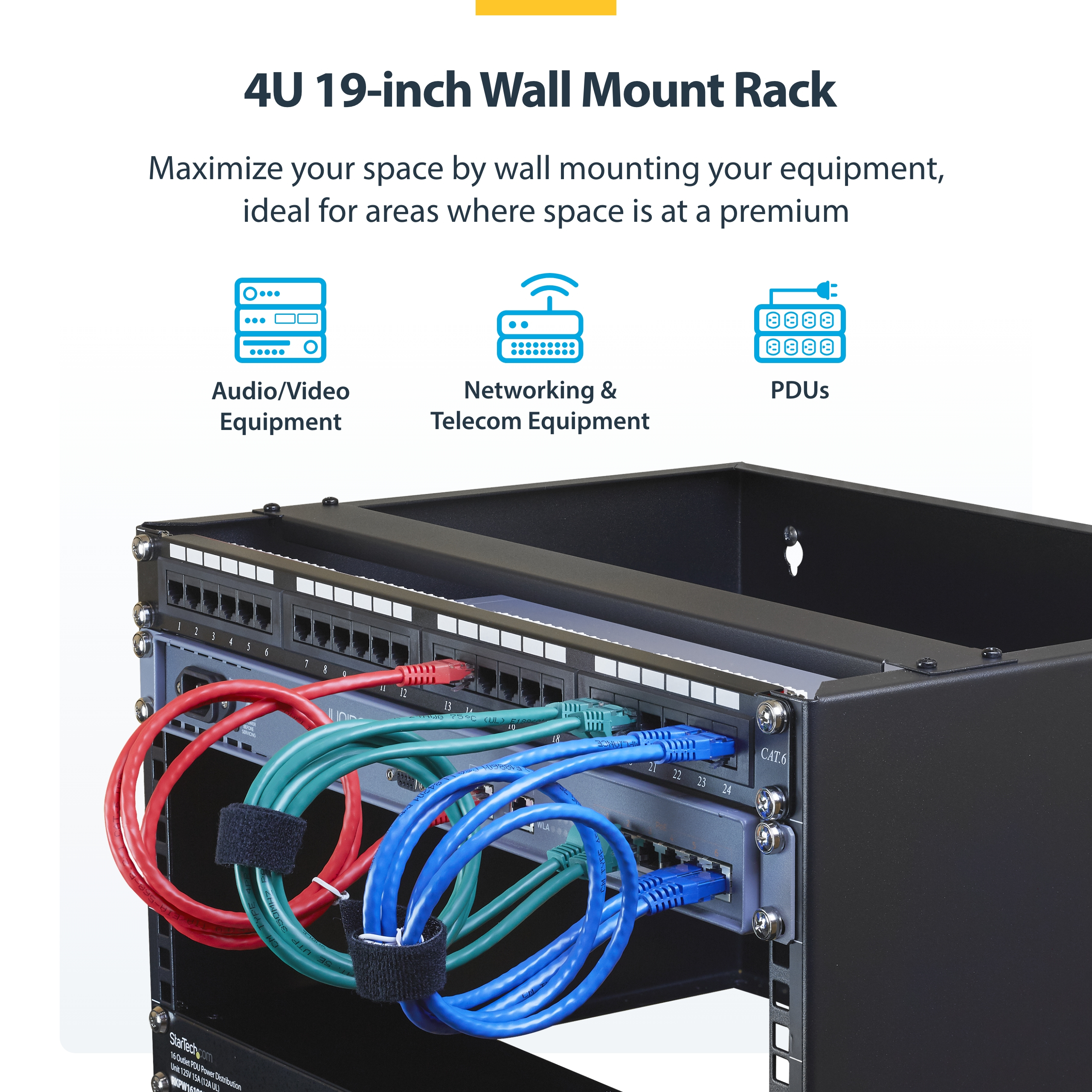

If you’re dealing with a shallow telecom-style install (think comms cupboards, office fibre rooms, or low-clearance racks), this StarTech low-profile 4U wall-mount bracket is a sensible, no-drama buy. At ~£46 ex-VAT it’s good value because you’re not paying “rack tax” for depth you don’t need. The wall-mount form factor also helps when you don’t want floor-standing cabinets eating up space, and the 4U patch panel bracket approach is handy for keeping switches and cabling tidy rather than stuffed behind a desk or in a generic bracket pile.

That said, I’d only buy it if you’ve confirmed you truly have the clearance and mounting situation sorted. Wall mounts live or die by the wall type (stud/solid brick/appropriate fixing), and the rated weight/capacity only matters if the load is actually applied correctly with proper brackets and installation. If you’re building out a normal-depth server rack, you’ll likely regret this immediately—shallow is great until you realise your gear still won’t play nicely. For most small network refreshes, patching, and switch deployments in constrained spaces, it’s a good, practical solution. For anything requiring flexibility or future growth into deeper equipment, look at a deeper or freestanding option instead.

Specifications

Features

Rack capacity4U
TypeWall mounted rack
Maximum weight capacity20 kg
Product colourBlack

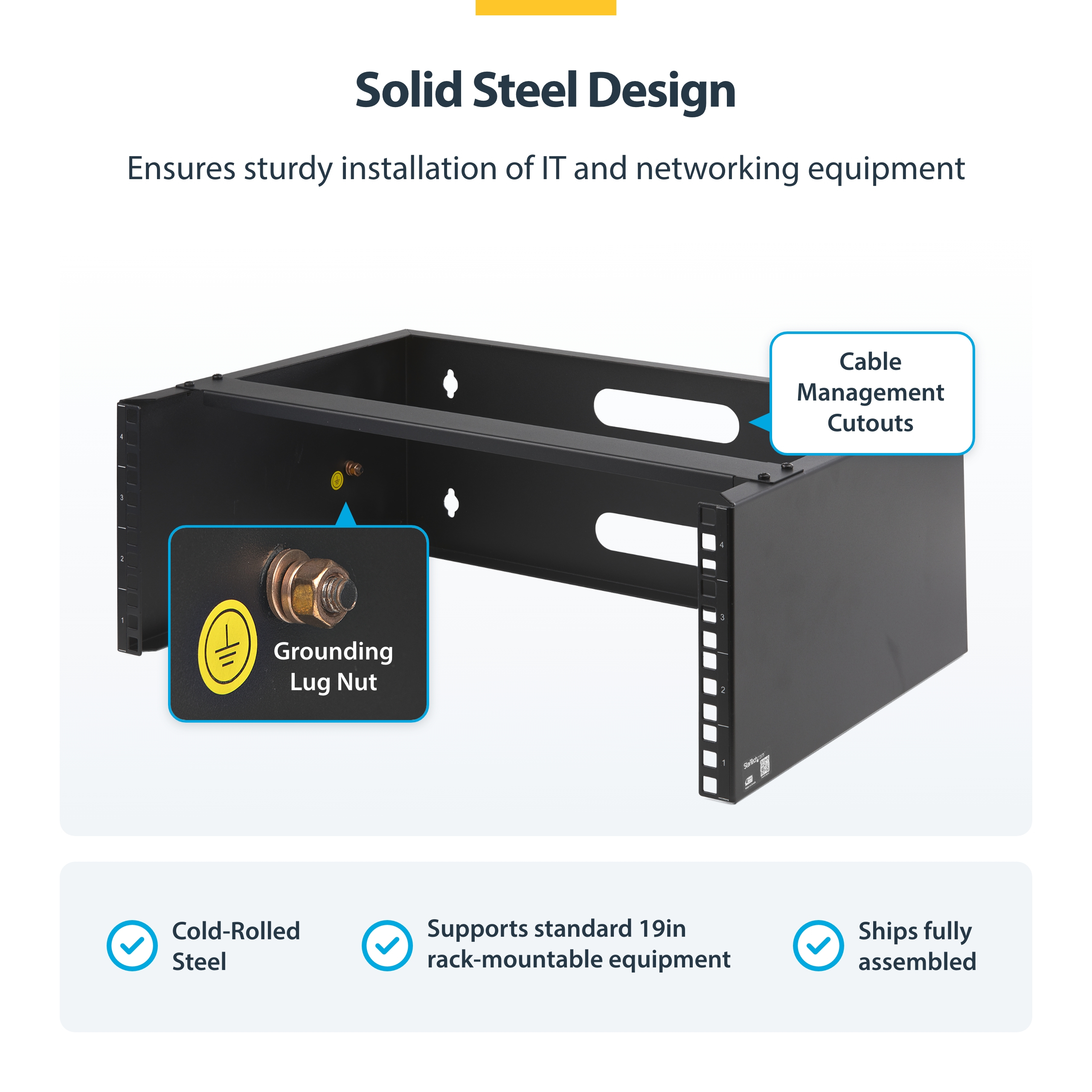

MaterialSteel

Weight & dimensions

Width498 mm
Depth350 mm
Height184 mm
Weight5000 g
Mounting depth (max)350 mm

Packaging data

Nuts includedY
Number of nuts16
Screws includedY
Number of screws20
Number of washers included16

Technical details

Compliance certificatesCE,RoHS

Logistics data

Harmonized System (HS) code85381000
Master (outer) case width534 mm
Master (outer) case length387 mm
Master (outer) case height230 mm
Products per master (outer) case1 pc(s)

Other features

Compliance industry standardsEIA/ECA-310-E
