ShopKVM SwitchesStarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD

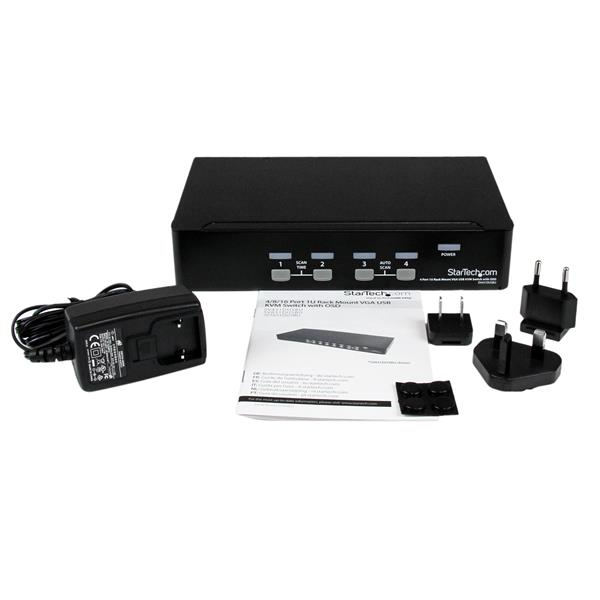

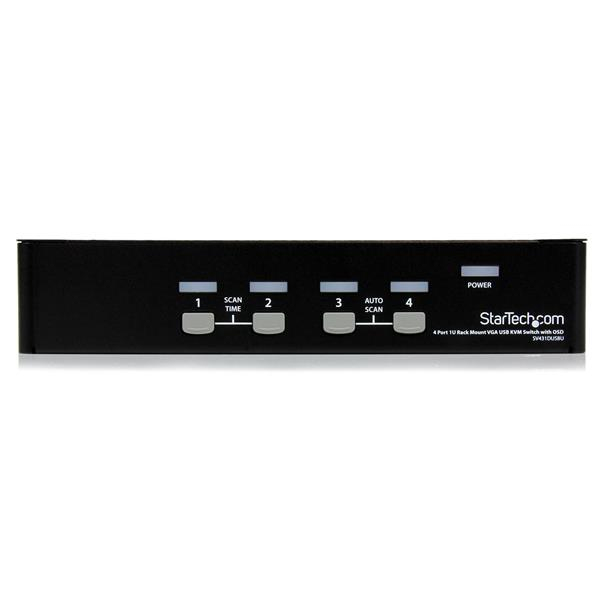

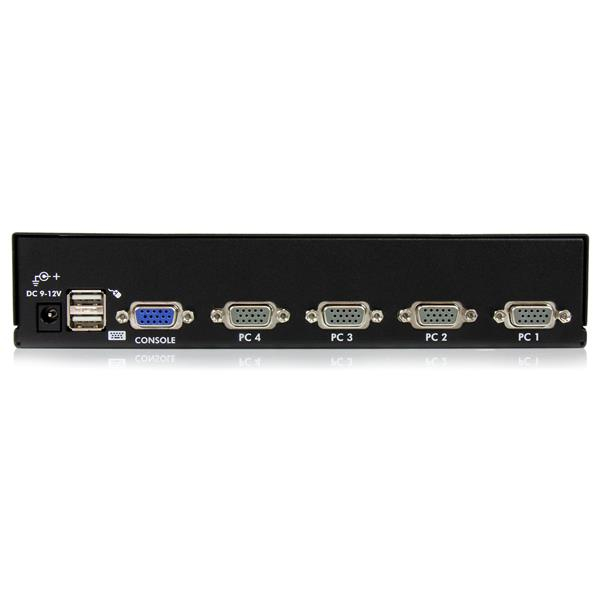

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD
View 1
View 2
View 3
View 4

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD

£152.93

£183.52 inc. VAT

Out of Stock(0)MPN: SV431DUSBU
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com 4-Port USB KVM Swith with OSD
TAA Compliant
1U Rack Mountable VGA KVM Switch (SV431DUSBU)
KVM switch
4 x KVM port(s)
1 local user
desktop
for P/N: IM12D1500P, RACKCOND17HD, RKCONS1701, SVA12M2NEUA, SVA12M5NA, SVUSBVGA10, SVUSBVGA6

Product Overview

AI-generated summary

The StarTech 4‑port 1U USB rack KVM with OSD is a sensible “server room utility” for a small team that needs one place to manage multiple machines without going down the expensive consolidation route. For the money (£153 ex‑VAT), it feels aimed at practical deployments: getting console access quickly for a few servers/VM hosts, keeping cabling tidy in a 1U footprint, and using the on‑screen display so you’re not hunting around with hardware buttons when you’re under pressure. If you’re a reseller, MSP, or IT manager supporting, say, four blades/servers in one rack, it’s exactly the kind of straightforward tool that saves time during troubleshooting and boot/admin tasks.

That said, I wouldn’t buy it if you need anything beyond “good enough” KVM use. USB/KVM gear like this can be sensitive to peripherals, BIOS/boot behaviour, and long sessions depending on your server setup—so if you’re doing lots of high‑frequency switching or expect smooth, uninterrupted interaction across demanding workloads, you may end up frustrated. Also, if you’re planning to grow beyond four systems, you’ll want to consider whether stepping up later will cost more than simply designing for the current number of ports. For four-machine racks where console access matters and simplicity wins, it’s good value; for performance‑sensitive or “power user” KVM workflows, I’d look at alternatives first.

Specifications

Ports & interfaces

Number of computers controlled4
Keyboard port typeN
Mouse port typeN
Video port typeVGA
VGA (D-Sub) ports quantity5

Performance

Maximum resolution1920 x 1440 pixels
Maximum analog resolution1920 x 1440 pixels
Plug and PlayY
Daisy chainY

Design

Rack mountingY
Rack capacity1U
Product colourBlack
Housing materialSteel
LED indicatorsPower

Display

Built-in displayN
On Screen Display (OSD)Y

Power

Input voltage110 - 240 V
Input current0.2 A
Output voltage9 V
Output current0.6 A
Power consumption (typical)5.4 W

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80 %

Weight & dimensions

Width220 mm
Depth130 mm
Height43 mm
Weight957 g
