ShopNIC & Network AdaptersStarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection

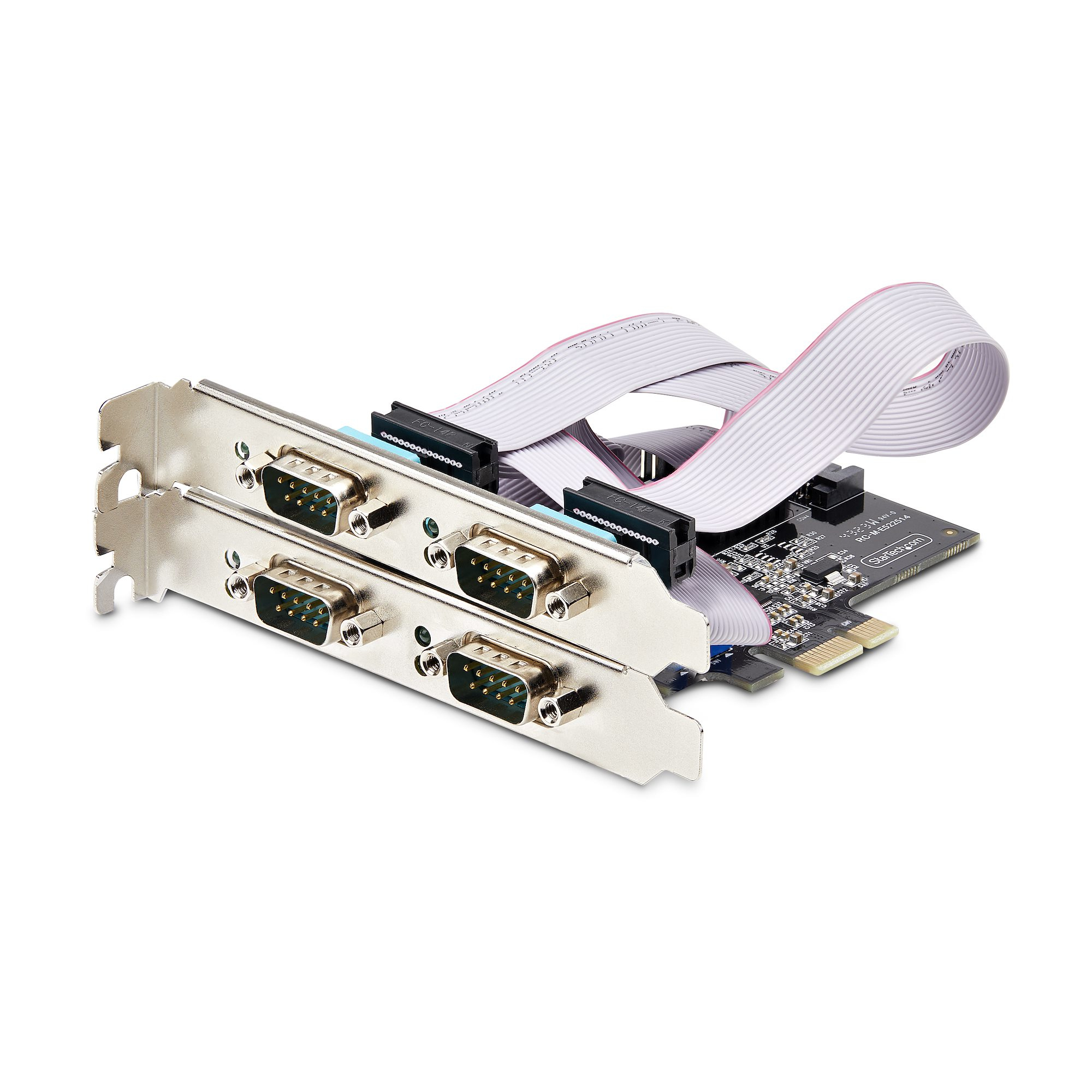

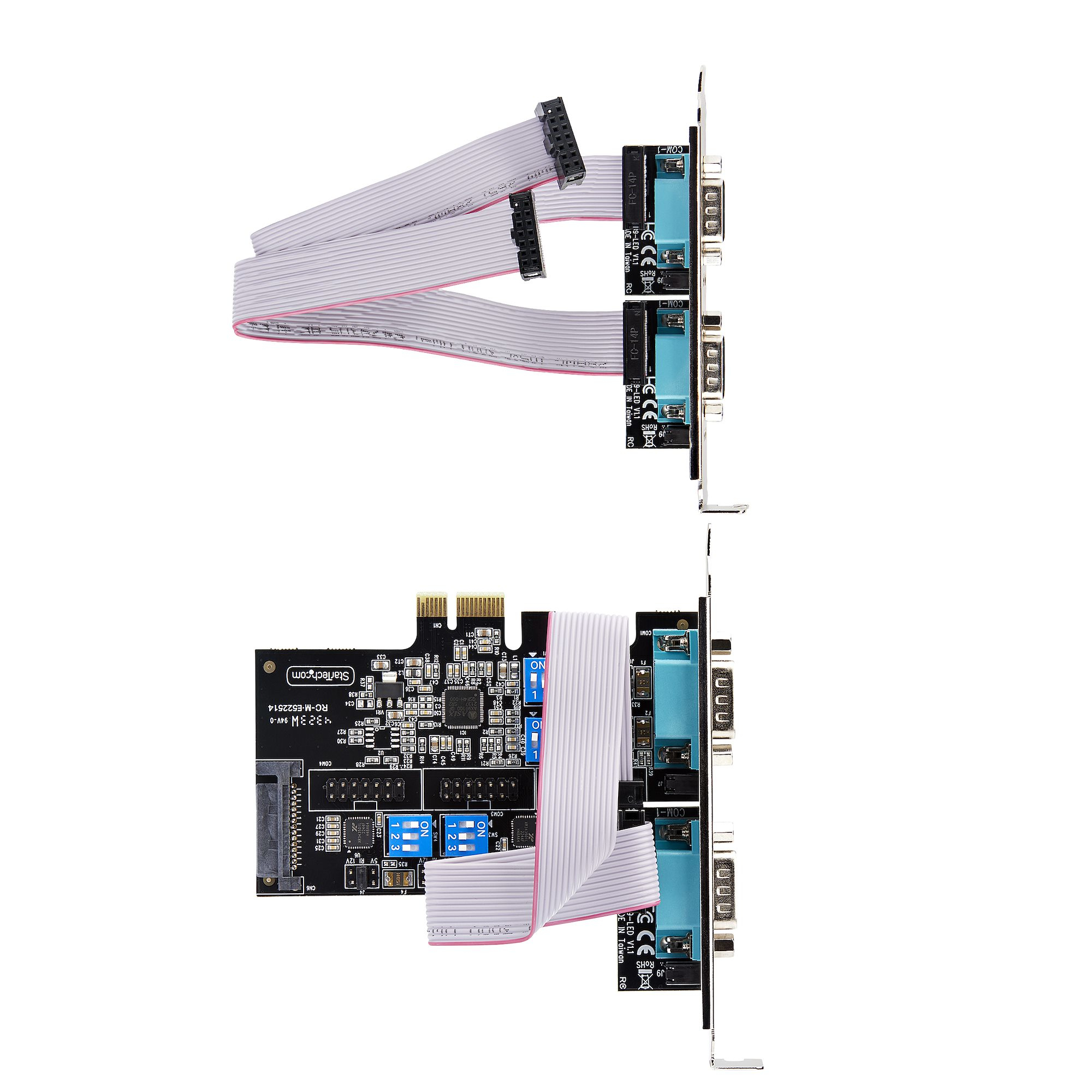

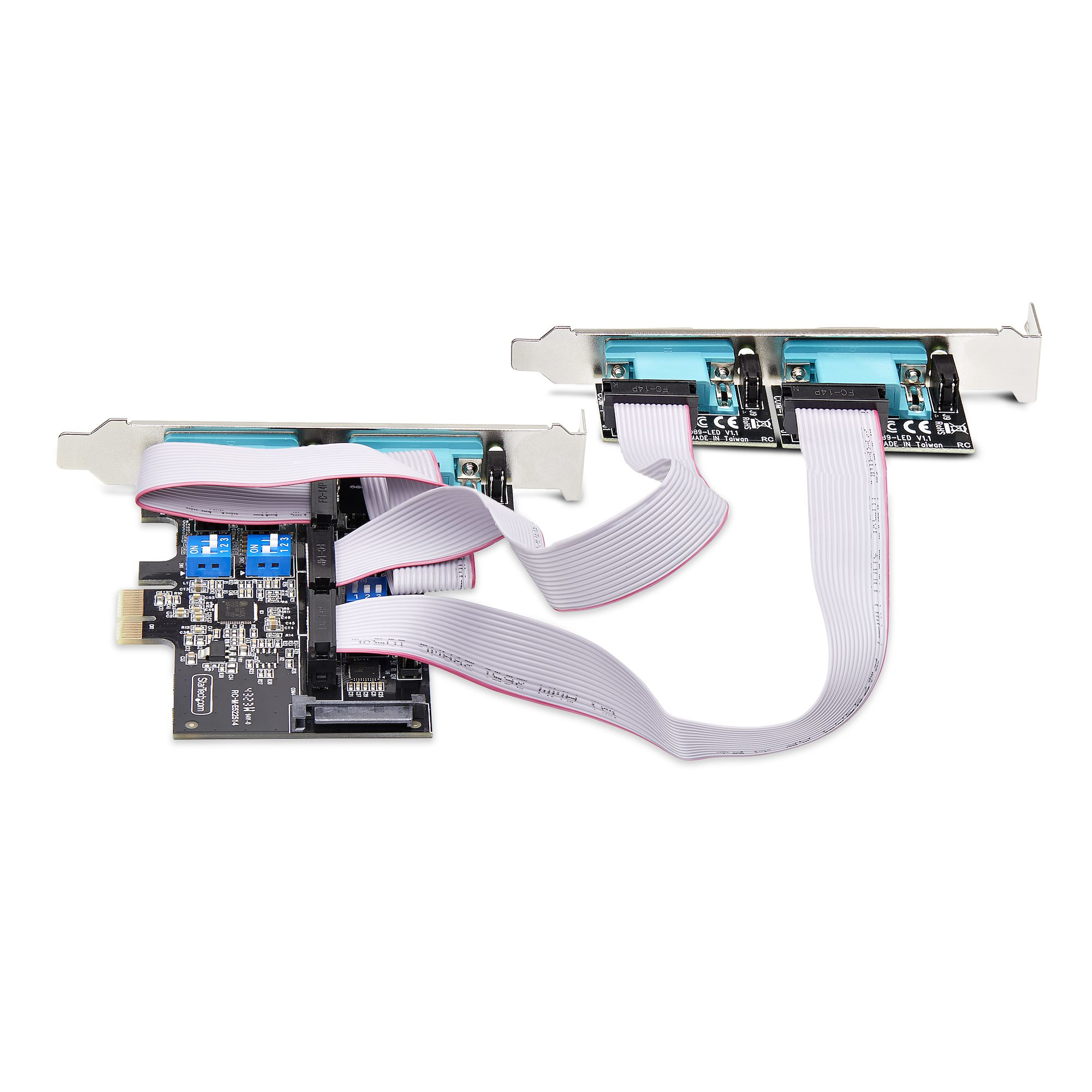

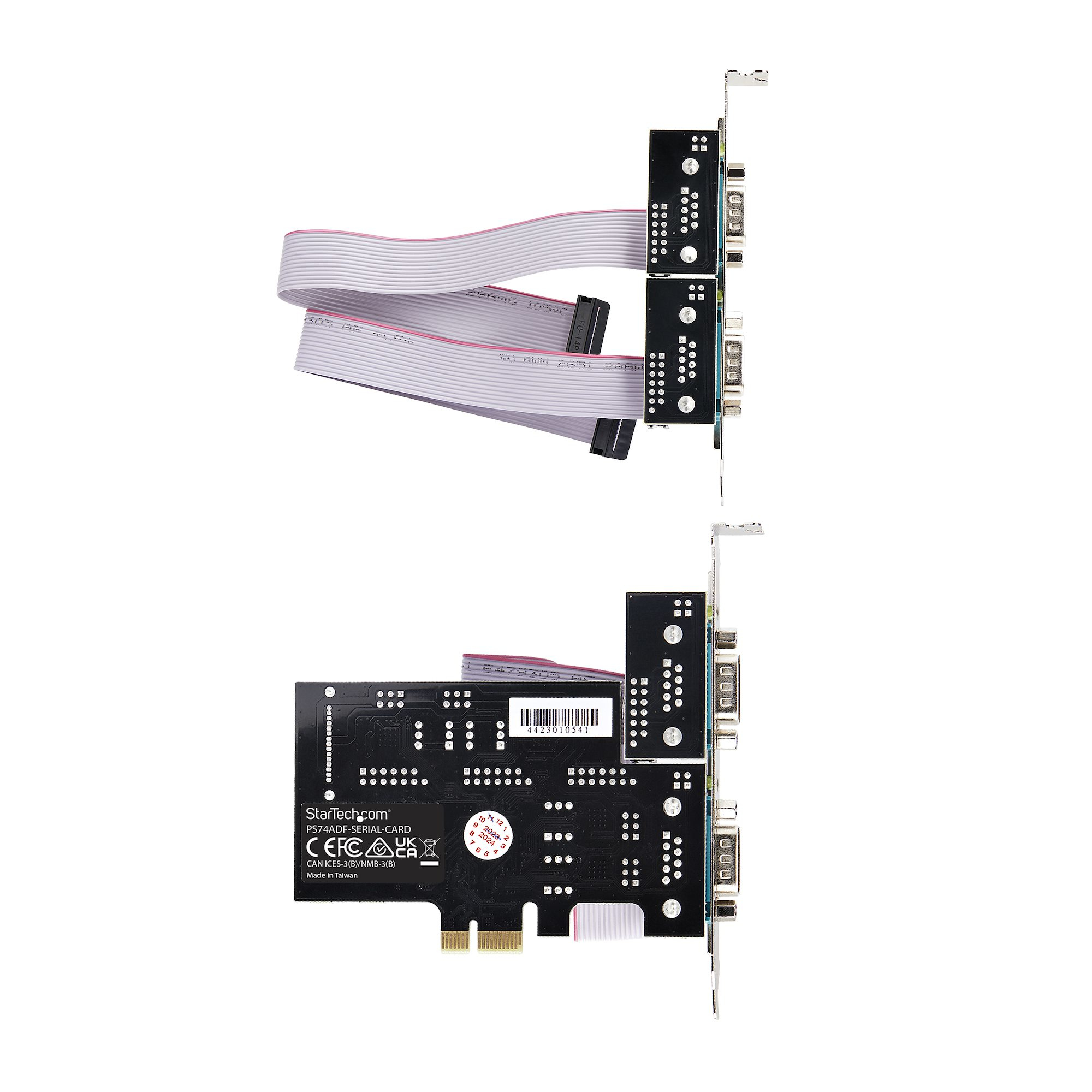

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
View 1
View 2
View 3
View 4
View 5
View 6

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection

£144.91

£173.89 inc. VAT

Out of Stock(0)MPN: PS74ADF-SERIAL-CARD
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, TAA-Compliant, For Windows/Linux, TAA Compliant
Level-4 ESD Protection (PS74ADF-SERIAL-CARD)
Serial adapter
PCI Express x1 low profile
RS-232 x 4
black
TAA Compliant

Product Overview

AI-generated summary

If you’ve got legacy kit that still talks RS232/RS422/RS485 and you need reliable serial connectivity in a modern Windows or Linux box, this StarTech quad-port PCIe card is a sensible, no-fuss choice. The big day-to-day win is you’re not juggling cheap USB-to-serial dongles or flaky ports—this is a proper PCIe interface with a real UART onboard, and the included low-profile bracket makes it easy to drop into tighter servers/small form factor PCs. At £145 ex-VAT, it’s good value when you consider the cost of downtime and rework from unreliable serial hardware.

That said, I wouldn’t buy it if you only need one or two serial ports, or if your environment already has known-good serial adapters you can reuse. Also, don’t assume “it’s an industrial card” means it’ll magically suit every weird RS485 wiring situation—RS485 tends to be more about cabling/termination/grounding than the card itself. If you’re dealing with high-noise locations, the mention of stronger ESD protection is reassuring, but your installation still matters. Overall: buy it if you need multiple dependable DB9 serial ports in a proper PC/server, and skip it if you’re light on ports or just need a quick, occasional connection.

Specifications

Ports & interfaces

Host interfacePCIe
Output interfaceSerial
Serial ports quantity4
Serial interface typeRS-232/422/485

Design

InternalY
Product colourBlack
LED indicatorsActivity

Features

ChipsetASIX - AX99100
Baud rate921.6 Kbit/s
FIFO (First In, First Out)256 B
Data bits5,6,8,9
Stop bits1,1.5,2

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-20 - 80 °C
Operating relative humidity (H-H)20 - 80 %

System requirements

Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 Enterprise,Windows 11 Enterprise x64,Windows 11 Home,Windows 11 Pro,Windows 11 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Linux operating systems supportedY
Server operating systems supportedWindows Server 2016,Windows Server 2019,Windows Server 2022

Technical details

Sustainability complianceY
Compliance certificatesRoHS,Trade Agreements Act (TAA)

Weight & dimensions

Width109 mm
Depth121 mm
Height16 mm
Weight60 g

Packaging data

Cables includedRibbon cable
Mounting brackets includedY
User guideY
Package width144 mm
Package depth207 mm
