ShopNIC & Network AdaptersStarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows/Linux - TAA

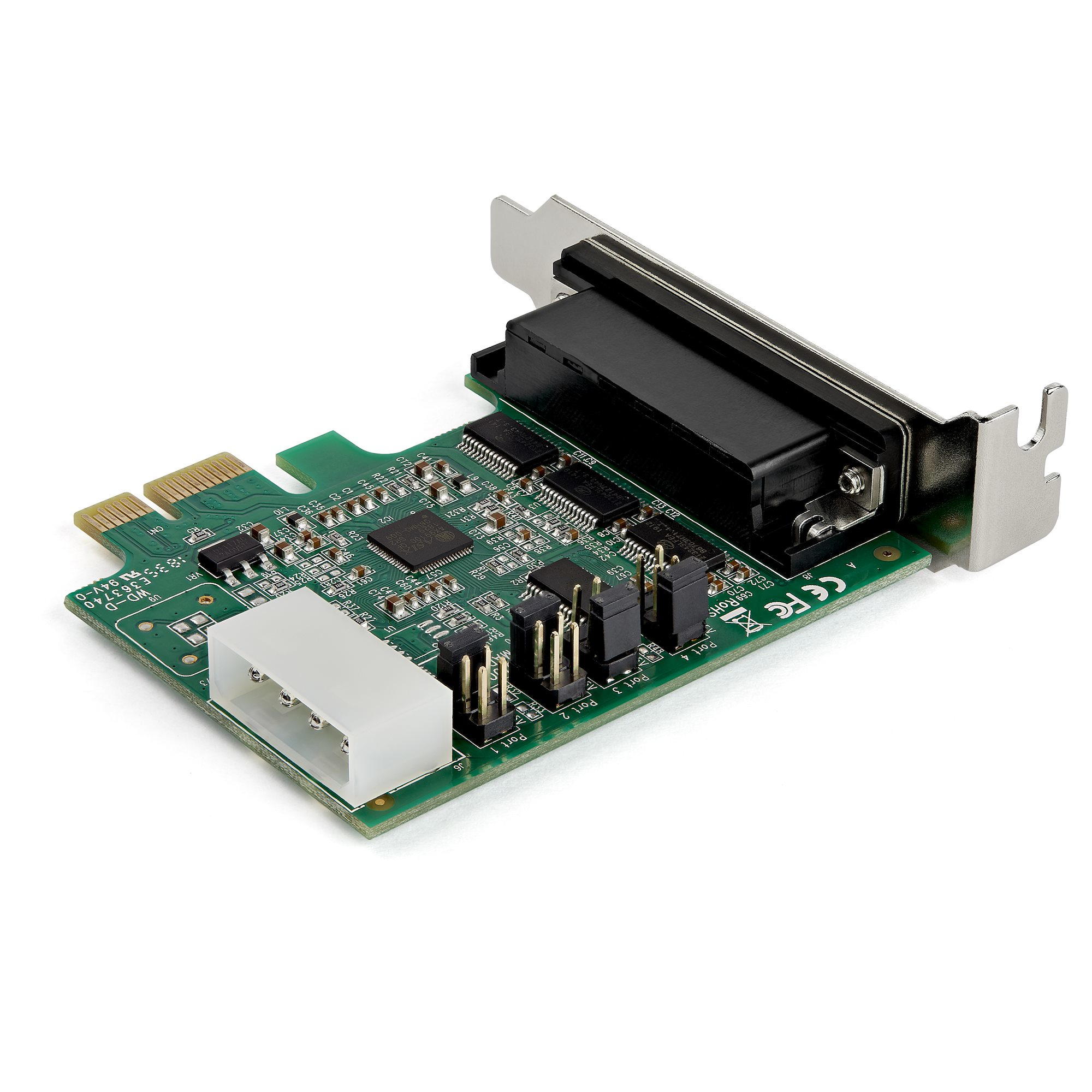

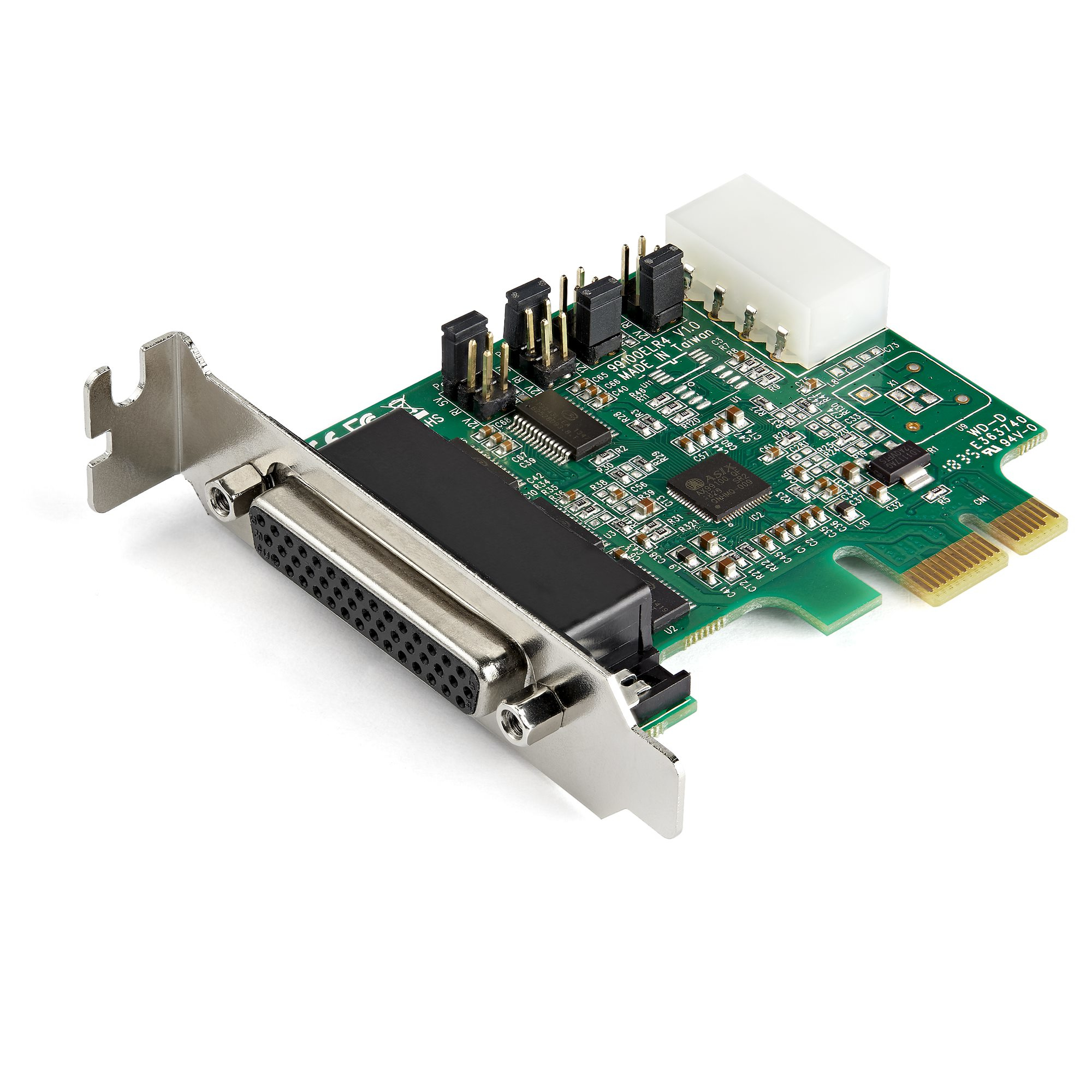

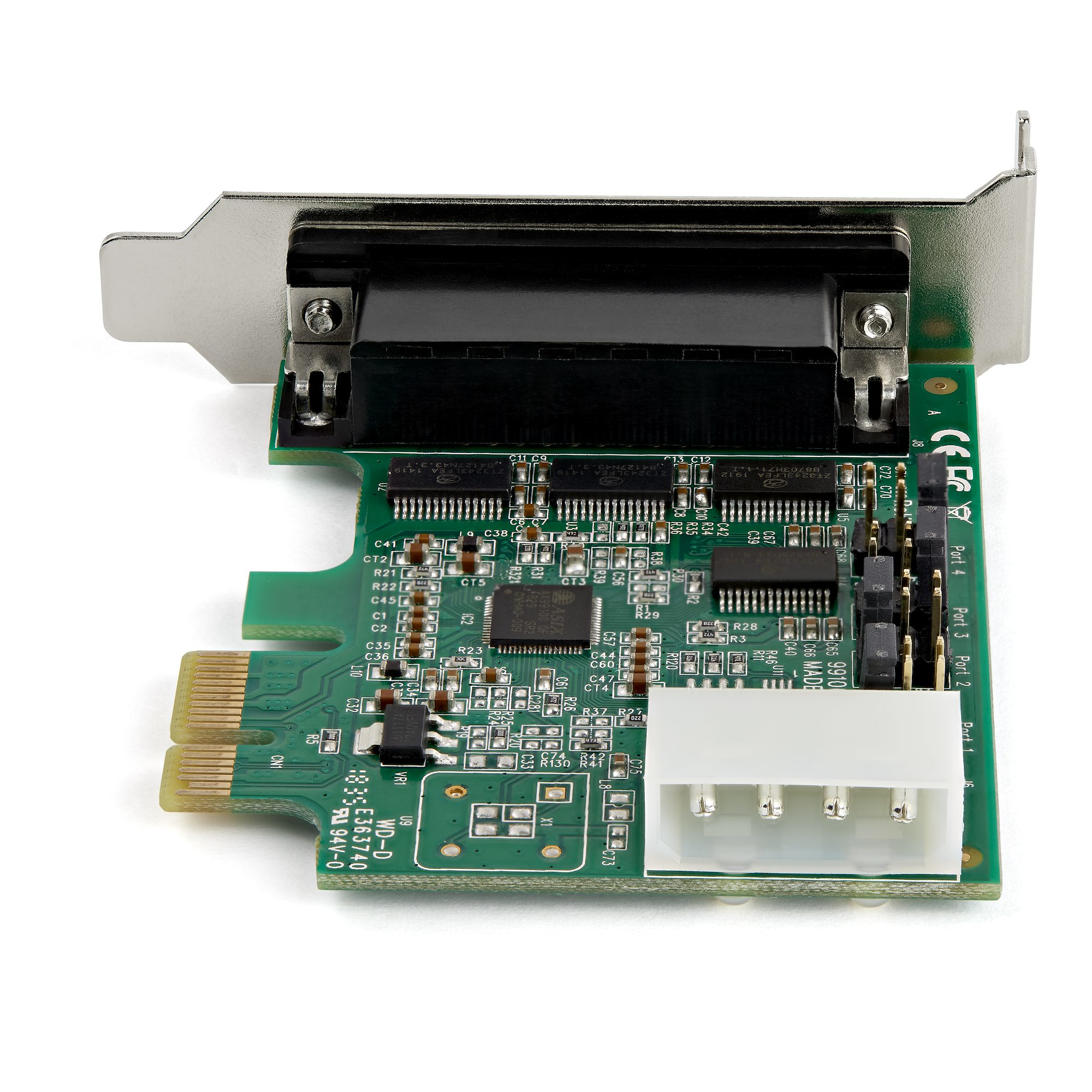

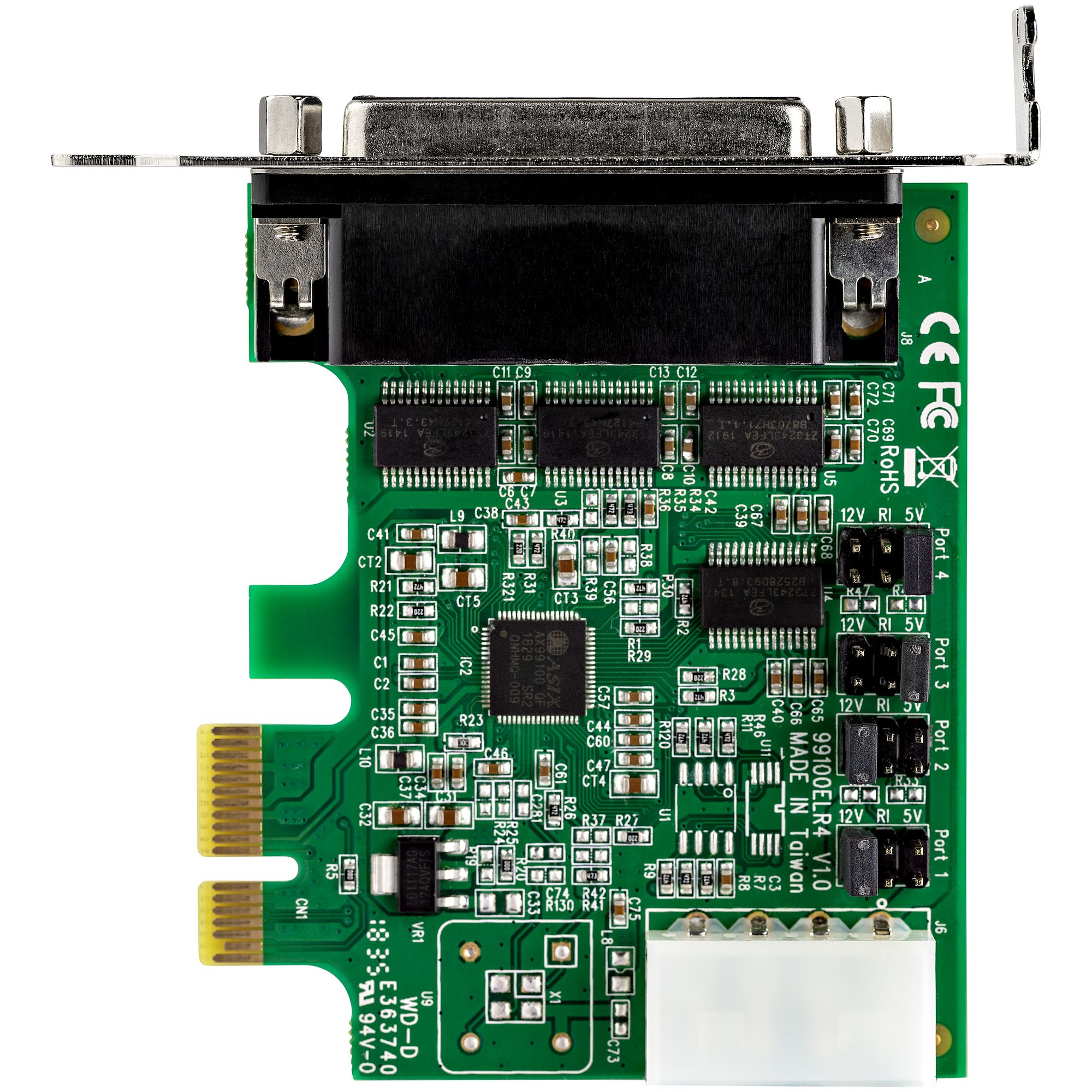

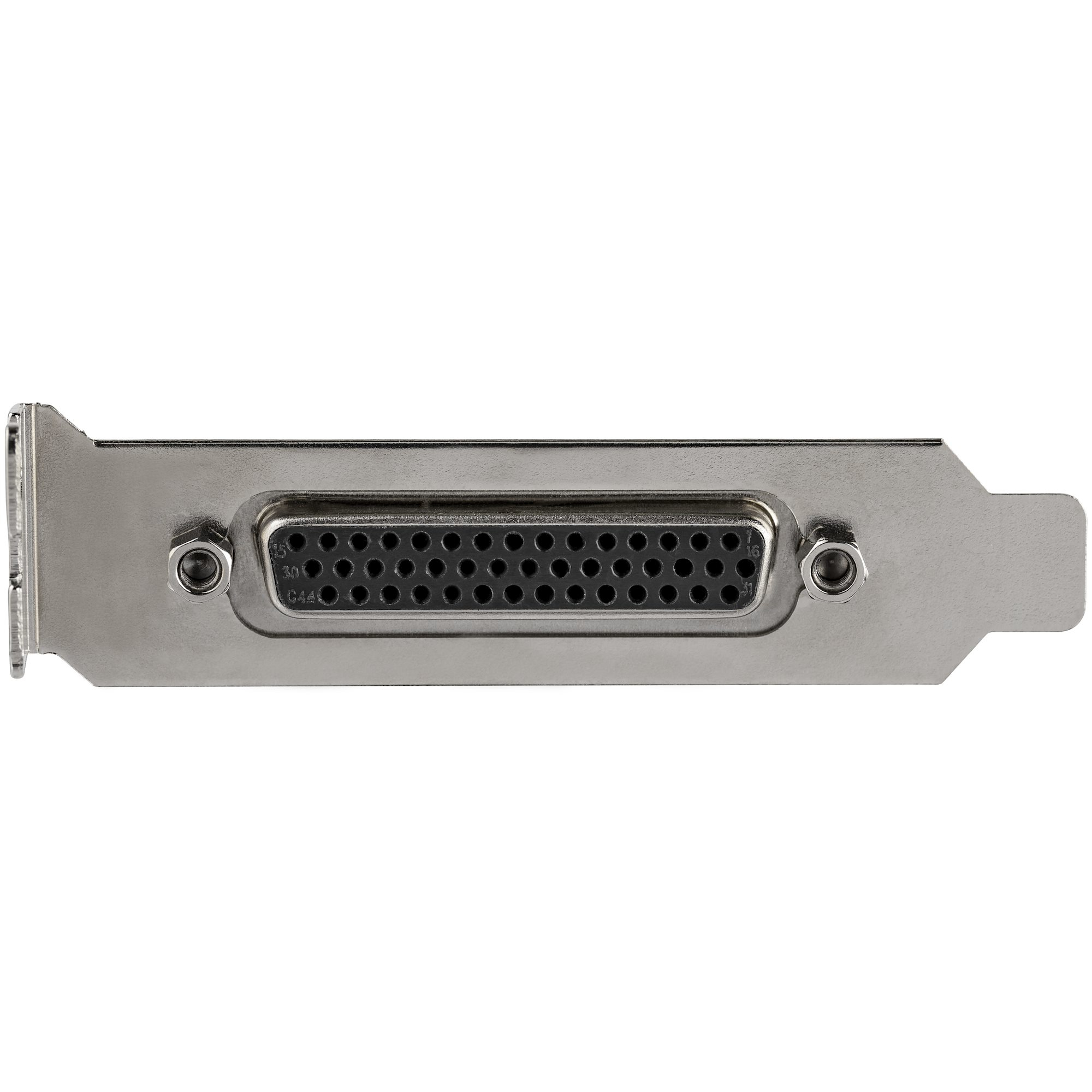

StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows/Linux - TAA
View 1
View 2
View 3
View 4
View 5
View 6

StarTech.com 4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows/Linux - TAA

£84.00

£100.80 inc. VAT

Low Stock(5)MPN: PEX4S953LP
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com 4-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9, 16950 UART, Low Profile Desktop Expansion Card, Windows, macOS, Linux
Full/Low-Profile (PEX4S953LP)
Serial adapter
PCI Express x1 low profile
RS-232 x 4

Product Overview

AI-generated summary

If you need extra legacy serial ports, this StarTech PCIe-to-DB9 card is a sensible, low-risk buy for the money. At ~£84 ex-VAT, you’re paying for something that generally just works with the usual Windows/Linux serial stacks, and it’s particularly handy in environments with KVM/console servers, barcode/scales, telemetry gear, industrial controllers, or any “we still need COM ports” situation. The fact it’s a 4-port card also makes it good value if you’re building out a small rack server or office device that doesn’t have room for a USB-to-serial dongle full of questionable drivers.

That said, I’d only buy it if you truly need PCIe serial rather than USB. USB-to-serial is sometimes “good enough” and can be cheaper and easier to swap, but it can be more variable depending on adapters. Also, if this is going into modern servers that are sensitive to low-profile fit or you’re expecting truly high-throughput or heavily buffered industrial use, you’ll want to validate your software/OS requirements—serial is notoriously sensitive to driver settings and cable quality. For most UK B2B admin and ops teams, though, this is a fair-priced, dependable way to add COM ports when you can’t (or don’t want to) go legacy-hardware-through-USB.

Specifications

Ports & interfaces

Host interfacePCIe
Output interfaceSerial
Expansion card standardPCIe 1.1

Design

InternalY
Product colourGreen
Mean time between failures (MTBF)214358 h
CertificationCE, FCC

Features

ChipsetAsix AX99100
Baud rate921.6 Kbit/s
FIFO (First In, First Out)256 B
Data bits5,6,7,8,9
Stop bits1,1.5,2

Operational conditions

Operating temperature (T-T)-10 - 80 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85 %

System requirements

Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Linux operating systems supportedY
Server operating systems supportedWindows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width75 mm
Depth63 mm
Height18 mm
Weight264 g

Packaging data

Quantity1
Cables includedSerial
Mounting brackets includedY
Quick installation guideY
Package width213 mm
