ShopRacking & CabinetsStarTech.com 3U Fixed 19" Adjustable Depth Universal Server Rack Rails
StarTech.com 3U Fixed 19" Adjustable Depth Universal Server Rack Rails
View 1
View 2
View 3
View 4
View 5
View 6

StarTech.com 3U Fixed 19" Adjustable Depth Universal Server Rack Rails

£77.34

£92.81 inc. VAT

Low Stock(1)MPN: UNIRAILS3U
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

StarTech.com 3U Universal Server Rack Rails
TAA Compliant Fixed Mounting Rails
19" Adjustable Depth Rack Mount Rails (UNIRAILS3U)
Rack rail
black
3U
19"
for P/N: RK1233BKM, RK2433BKM, RK2537BKM, RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30

Product Overview

AI-generated summary

For £77 ex-VAT, these StarTech adjustable-depth 3U universal rails are a pretty sensible buy **if you’ve got one or two server/form-factor oddballs** and you don’t want to spend time fighting mounting compatibility. The “adjustable depth” is the real practical value here: you can line the chassis up properly with the front and keep rear clearance sensible, which matters for airflow and cabling. They’re also the sort of item you buy once, then quietly thank yourself later when you upgrade hardware and don’t want to replace the whole rail kit.

I’d **recommend these for typical 19" rack installs** where the case dimensions vary a bit, or for smaller datacentre/IT rooms where flexibility beats perfect “fit” every time. Where I’d hesitate: if you’re standardising across a fleet and already know exact server depths, fixed rails (or rails specifically matched to your server models) can be quicker to deploy and easier to keep consistent. Also, if your rack depth is tight and you’re constantly swapping heavier equipment, make sure the rail quality and the rack’s load rating are a comfortable match—because cheap rails aren’t where you want to discover tolerances.

Specifications

Features

TypeRack rail
Product colourBlack
Housing materialSteel
Maximum weight capacity97.3 kg
Rack capacity3U

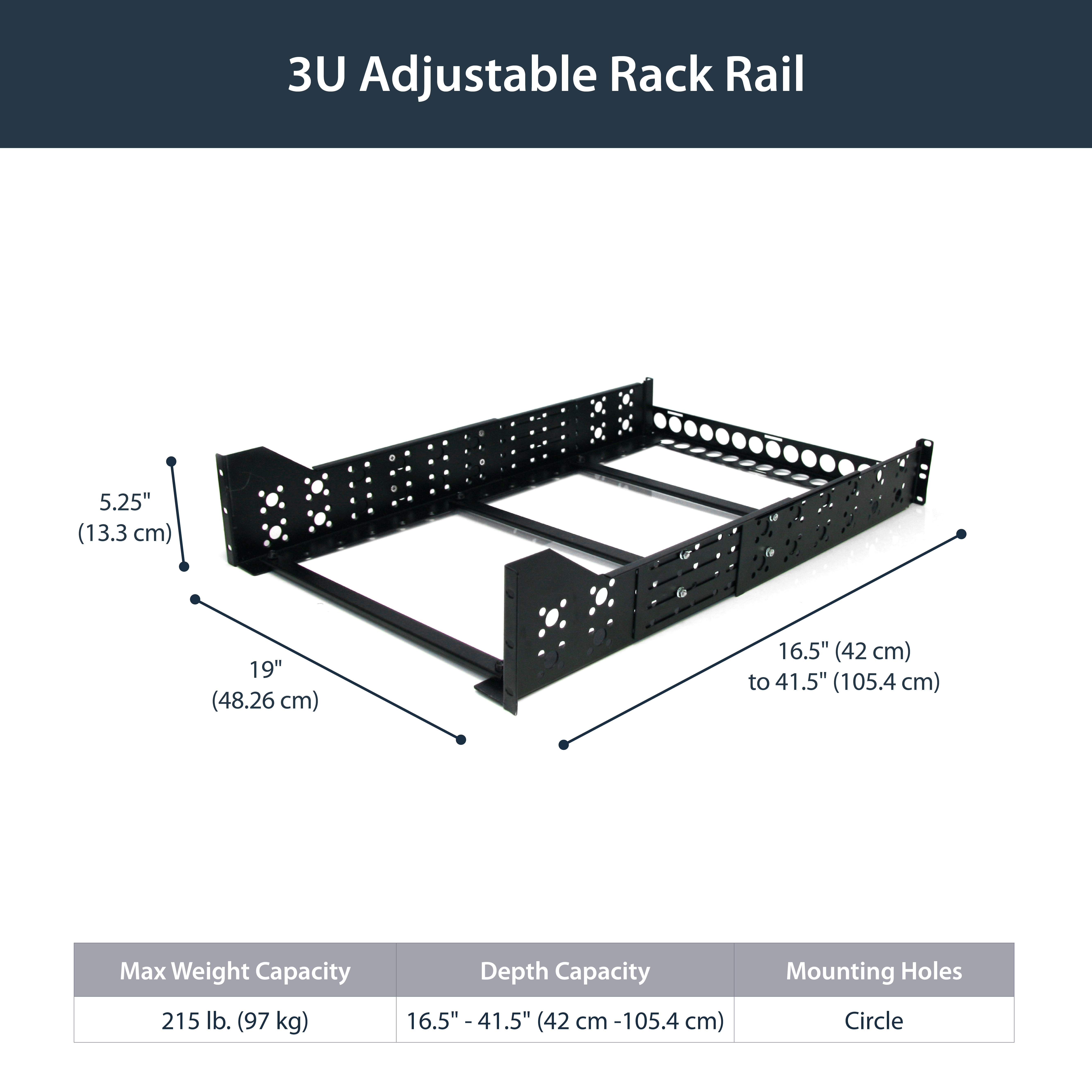

Weight & dimensions

Size (imperial)19 "
Width465 mm
Depth481 mm
Height130 mm
Mounting depth (min)420 mm

Packaging data

Package width105 mm
Package depth487 mm
Package height150 mm
Package weight4116.12 g

Packaging content

Mounting kitY
Screws includedY

Technical details

Compliance certificatesRoHS

Logistics data

Master (outer) case width105 mm
Master (outer) case length487 mm
Master (outer) case height150 mm
Products per master (outer) case1 pc(s)
Harmonized System (HS) code85389099

Other features

Form factor3U
