ShopSwitchers & SplittersATEN VM5808HA matrix switcher AV matrix switcher 58.1 W
ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W

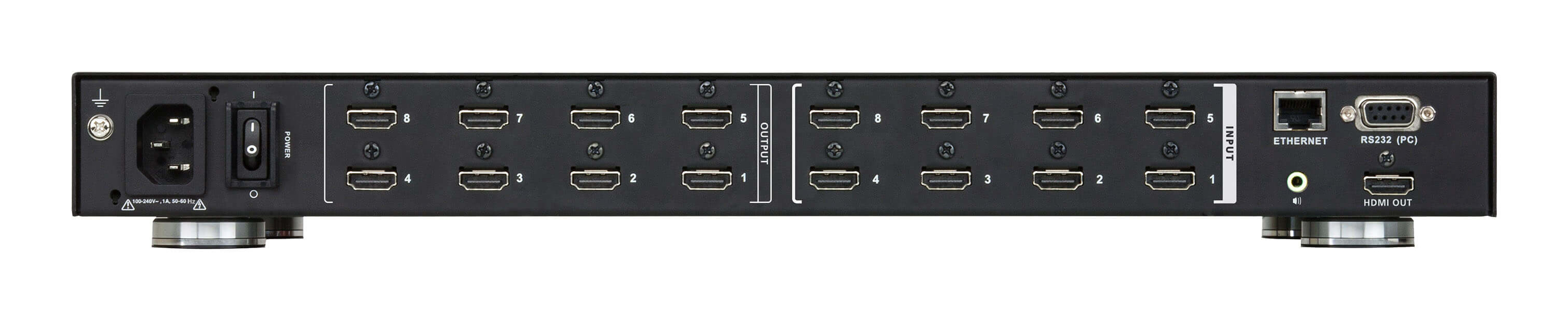

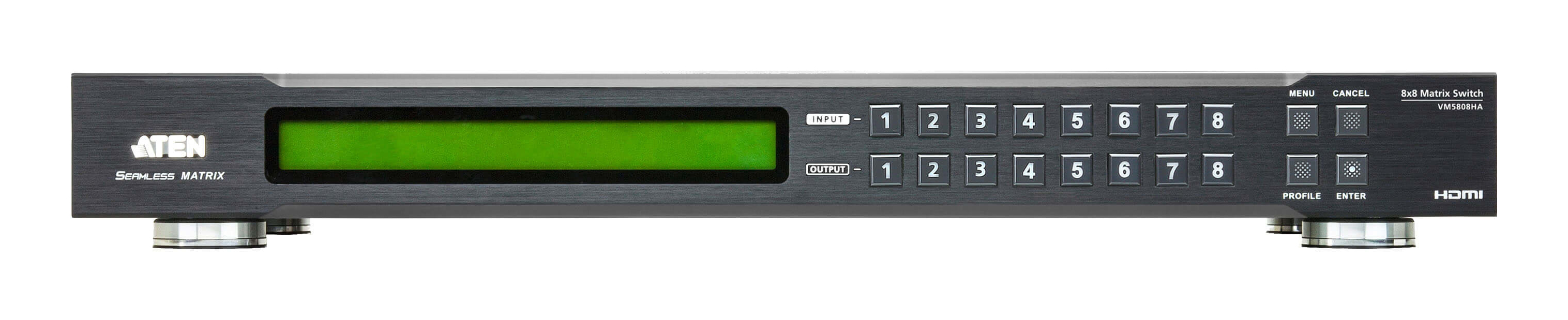

View 1
View 2
View 3

ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W

£3524.60

£4229.52 inc. VAT

Low Stock(7)MPN: VM5808HA
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

ATEN VM5808HA
Video/audio switch
8 x 8 HDMI matrix with scaler
rack-mountable

Product Overview

AI-generated summary

The ATEN VM5808HA is the sort of AV matrix you buy when you’ve got a real distribution problem and you don’t want it to become a hobby project. Eight inputs to eight outputs (in a proper matrix layout) is ideal for things like conference facilities, training suites, houses of worship, and control rooms where sources need to be routed differently depending on who’s speaking or what’s on the agenda. For £3,524 ex-VAT, the value only really makes sense if you’ll use the routing flexibility often—because you’re paying for convenience and reliability more than you’re paying for “raw specs”.

That said, it’s not a “cheap fix” for every setup. If your routes never change (or you only need simple splitting), you’ll probably waste money versus going simpler. Also, matrix products live or die on integration—HDMI handshake quirks, cable quality at longer runs, and input/output device compatibility can make or break the experience. If your environment includes lots of mixed source gear (media players, laptops, set-top boxes) and you don’t have control over them, plan for testing or professional commissioning. Overall: buy it if you need true matrix switching and repeatable operation; skip it if you just want basic distribution.

Specifications

Features

Product typeAV matrix switcher
Data transfer rate6.75 Gbit/s
Maximum pixel clock225 MHz
Maximum resolution1920 x 1080 pixels
HDCPY

Design

Housing colourBlack
Housing materialMetal
Rack mountingY
Rack capacity1U
On/off switchY

Display

Built-in displayN

Ports & interfaces

HDMI input ports quantity8
HDMI output ports quantity9
Ethernet LAN (RJ-45) ports1
RS-232 ports1
Audio (L/R) out1

Power

Power consumption (max)58.1 W
Power consumption (typical)56.6 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80 %
Heat dissipation265 BTU/h
Heat dissipation (max)272 BTU/h

Logistics data

Country of originTaiwan

Weight & dimensions

Width378.2 mm
Depth432.4 mm
Height44 mm
Weight5540 g
