ShopMotherboardsASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX
View 1

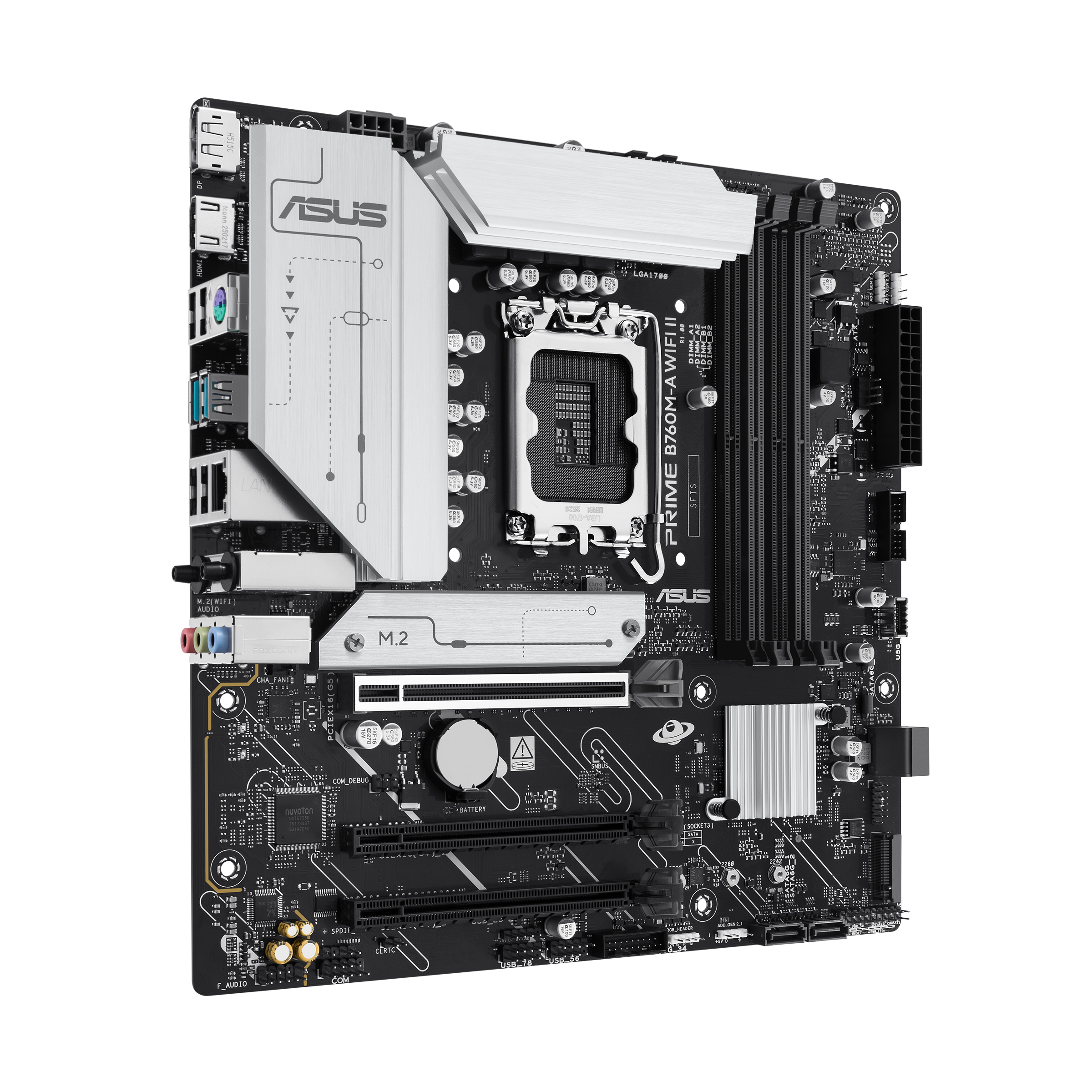

View 2

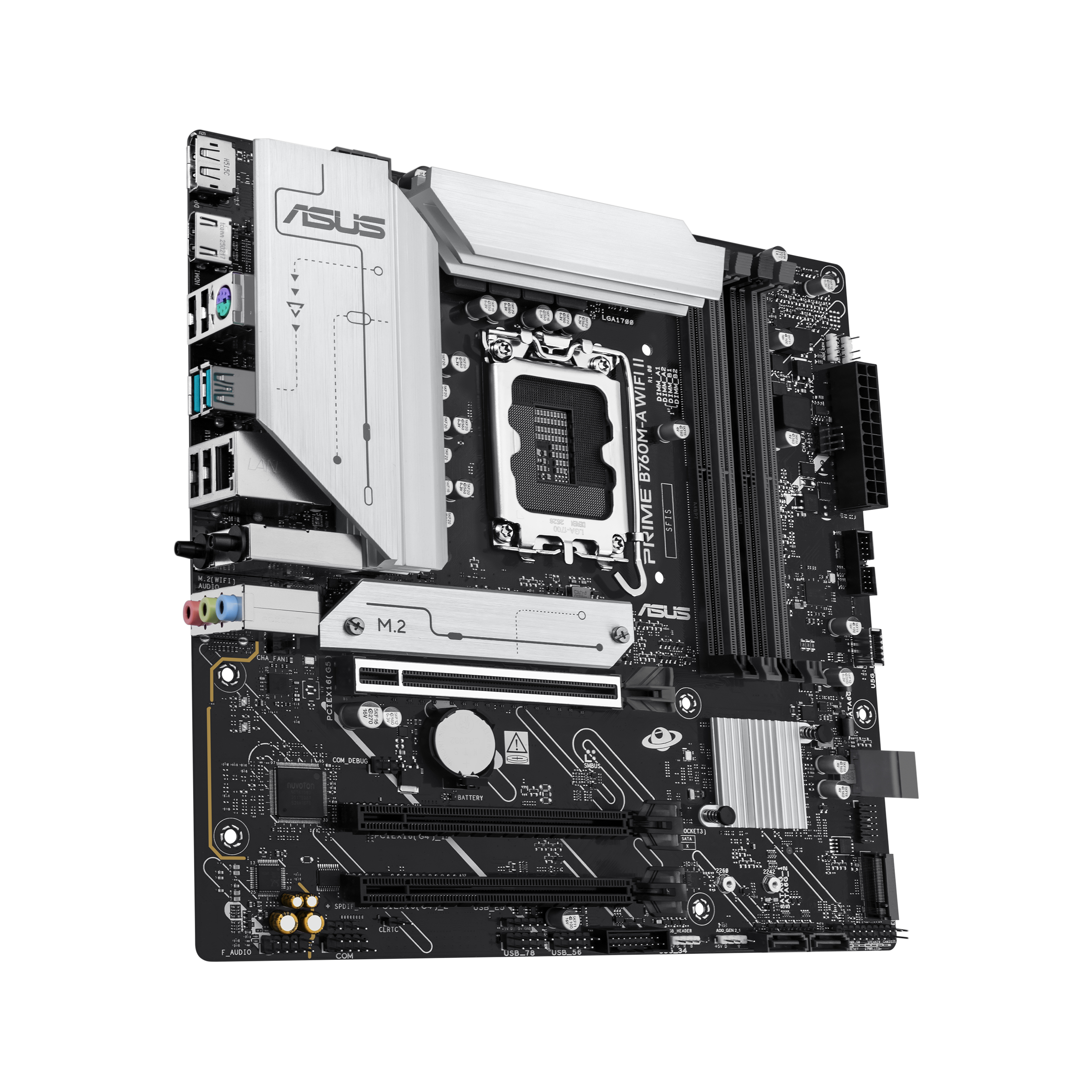

View 3

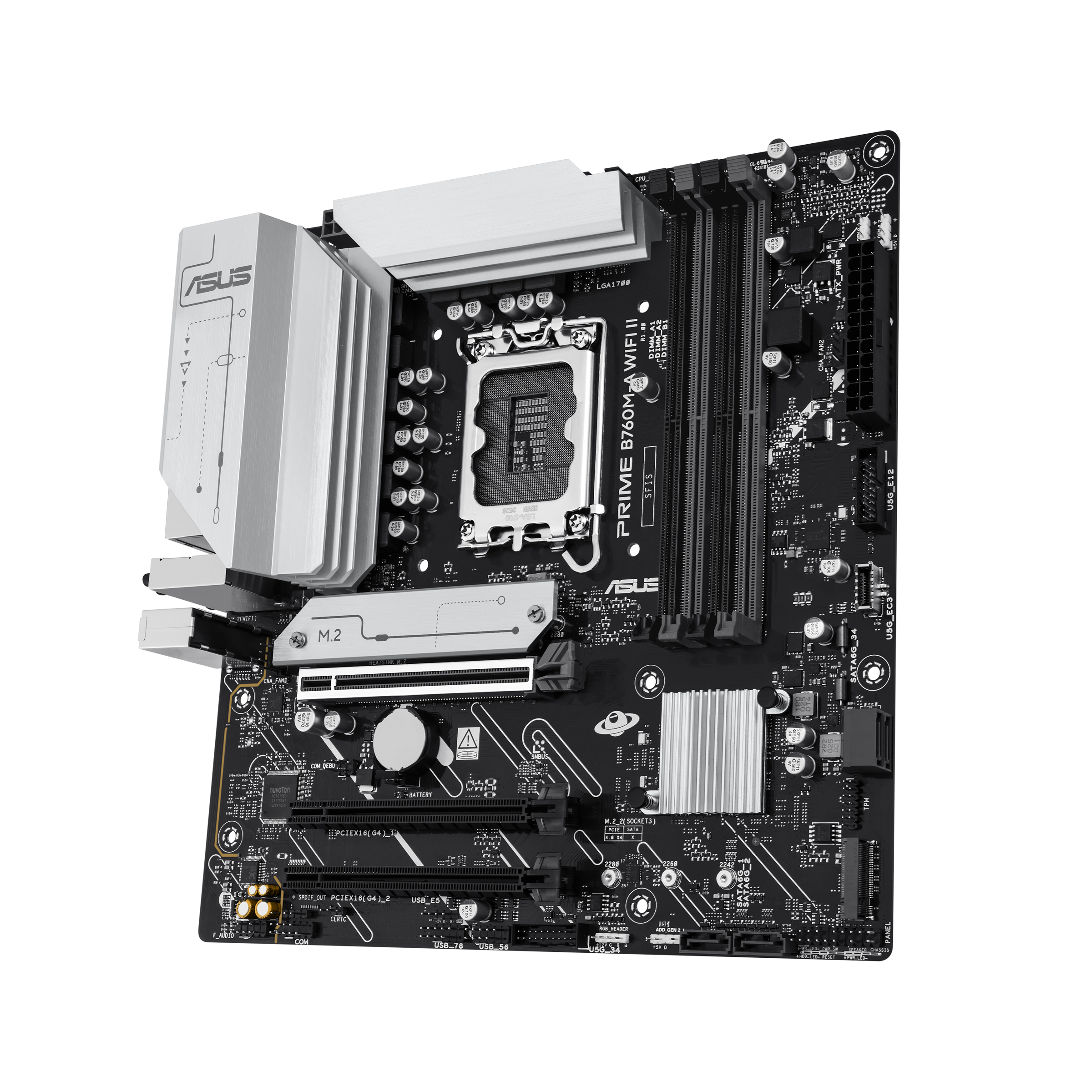

View 4

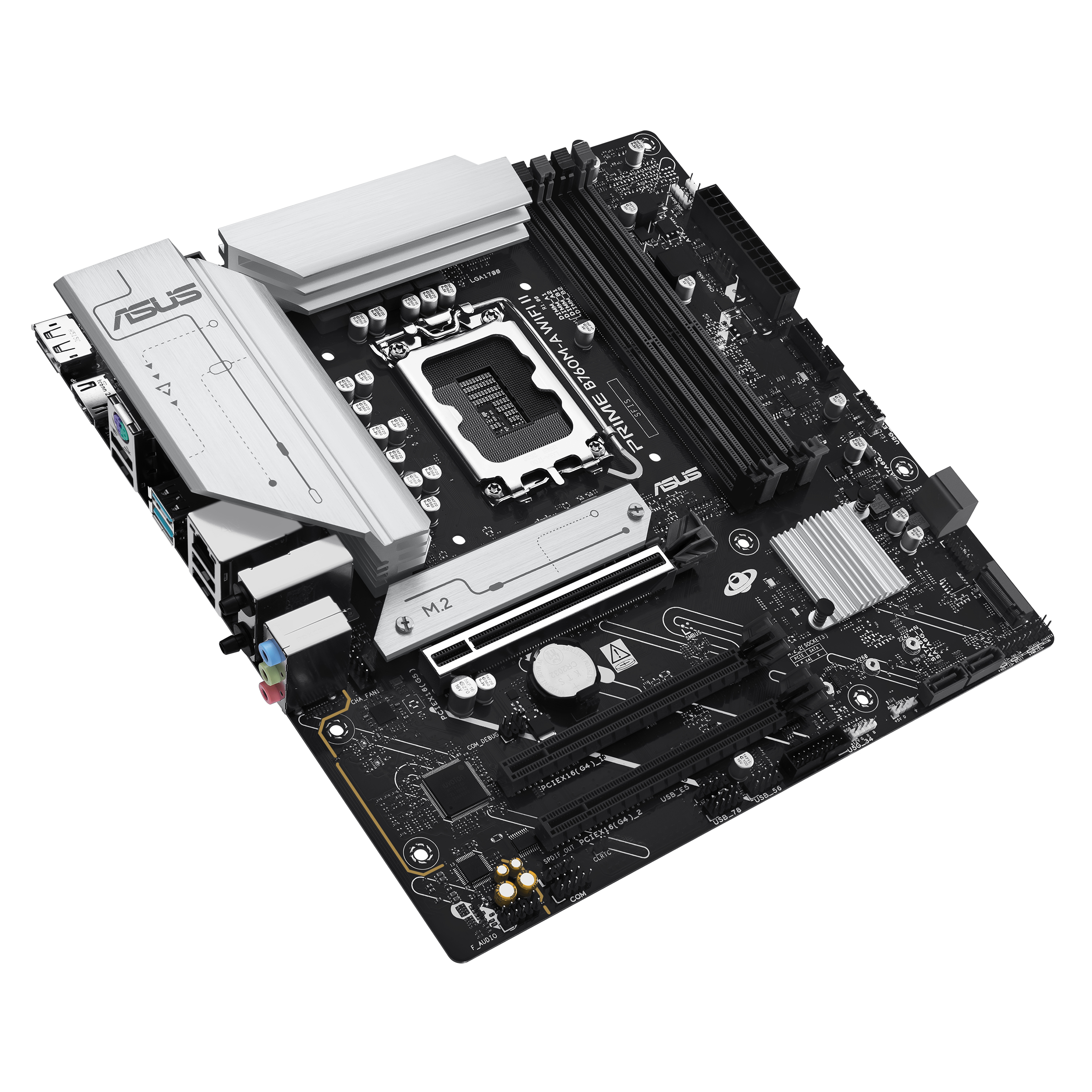

View 5

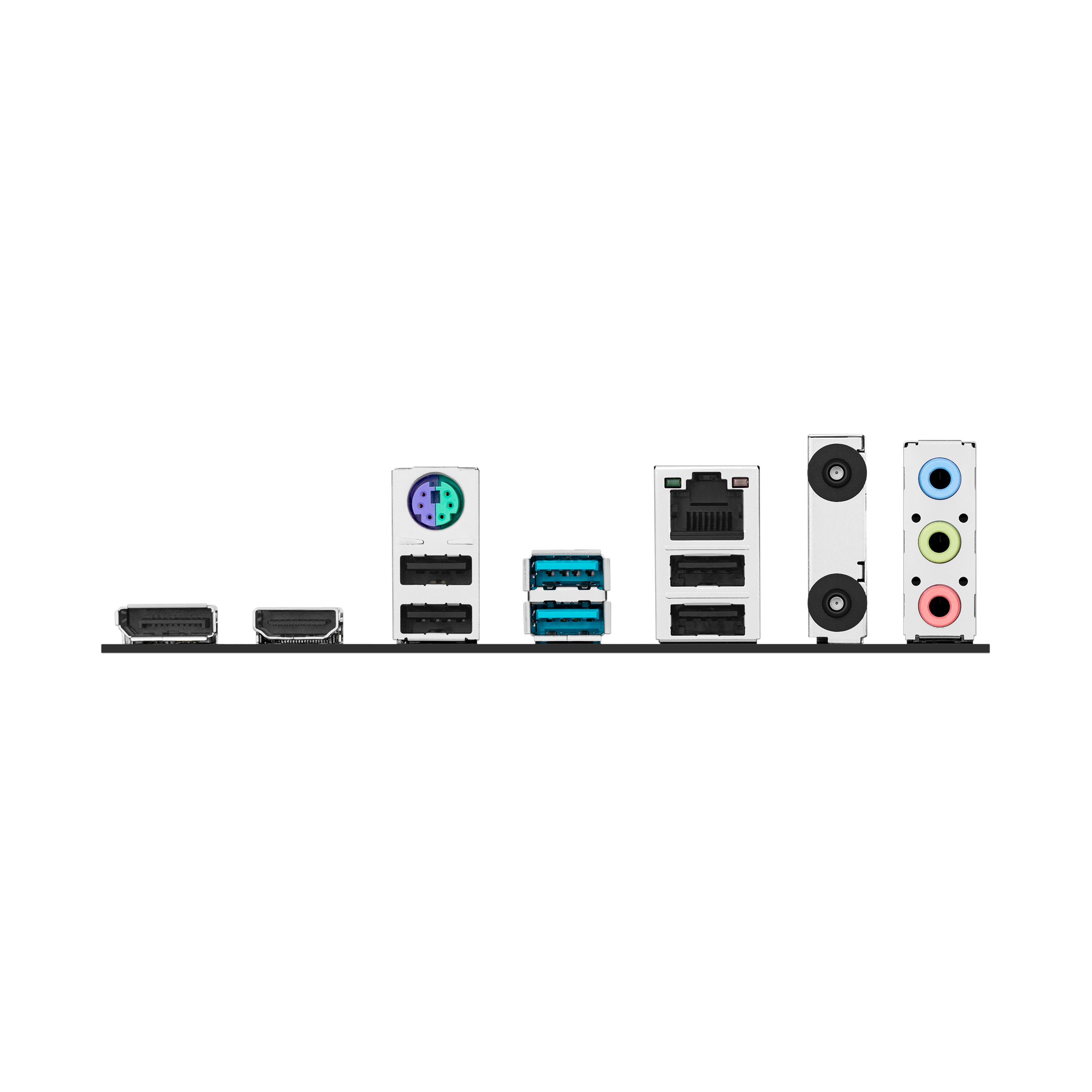

View 6

ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX

£115.79

£138.95 inc. VAT

Low Stock(18)MPN: 90MB1NF0-M0EAY0
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

ASUS PRIME B760M-A WIFI II
Motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB 3.2 Gen 2
2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
onboard graphics (CPU required)

Product Overview

AI-generated summary

For £116.71 ex-VAT, the ASUS PRIME B760M-A WiFi II is a sensible “get the job done” board for an office or small server-ish workstation build using Intel’s LGA1700 chips. ASUS tends to do well on day-to-day reliability and BIOS usability, and the micro‑ATX format is handy when you’re trying to keep cases compact without going for anything exotic. If you’re building something like a general-purpose PC for users, a light development box, or a lab machine that needs stable networking, this is the kind of motherboard that won’t get in your way.

That said, I wouldn’t buy it if you’re planning serious expansion, heavy multi-GPU work, or you want the most future-proof “upgrade headroom” without thinking about it first—this is a value board, not a workstation monster. Also, if you already know you’ll need specific add-in features (extra high-speed connectivity, lots of RAID/storage flexibility, etc.), it’s worth double-checking your requirements against what you actually need, because you’ll get better long-term value by matching the board to the use case rather than paying for nothing you’ll use. Overall: good value for standard business builds; avoid it only when your workload demands more than mainstream performance and expansion.

Specifications

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Core i3 12th Gen,Intel Core i3 13th Gen,Intel Core i3 14th Gen,Intel Core i5 12th Gen,Intel Core i5 13th Gen,Intel Core i5 14th Gen,Intel Core i7 12th Gen,Intel Core i7 13th Gen,Intel Core i7 14th Gen,Intel Core i9 12th Gen,Intel Core i9 13th Gen,Intel Core i9 14th Gen,Intel Pentium Gold
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilitynon-ECC

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportY

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
S/PDIF out connectorY
Front panel audio connectorY

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1

Network

Ethernet LANY
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiY
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)

Features

Motherboard chipsetIntel B760
Audio output channels7.1 channels
Component forPC
Motherboard form factorMicro ATX
Motherboard chipset familyIntel
