ShopMotherboardsASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
View 1

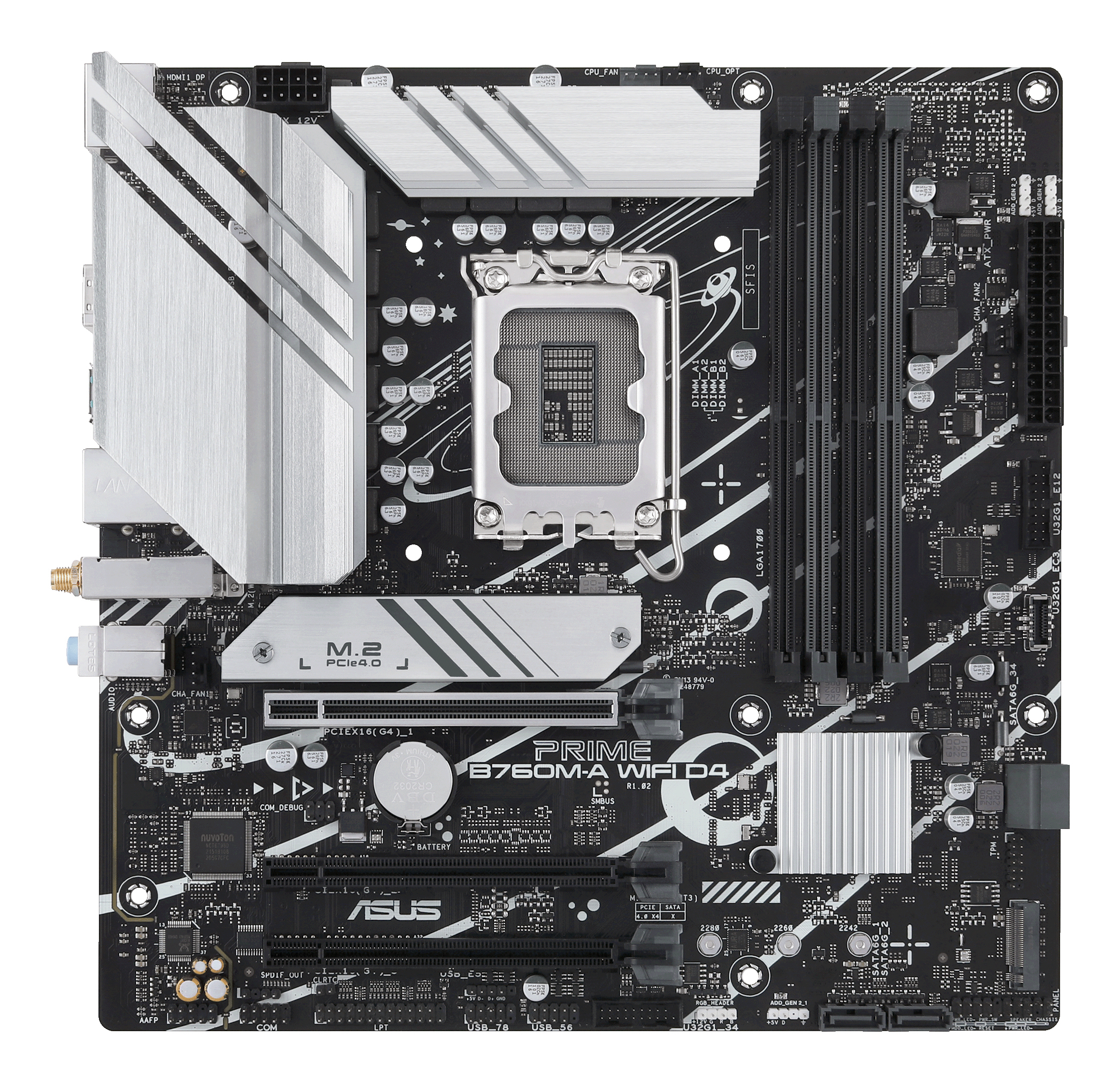

View 2

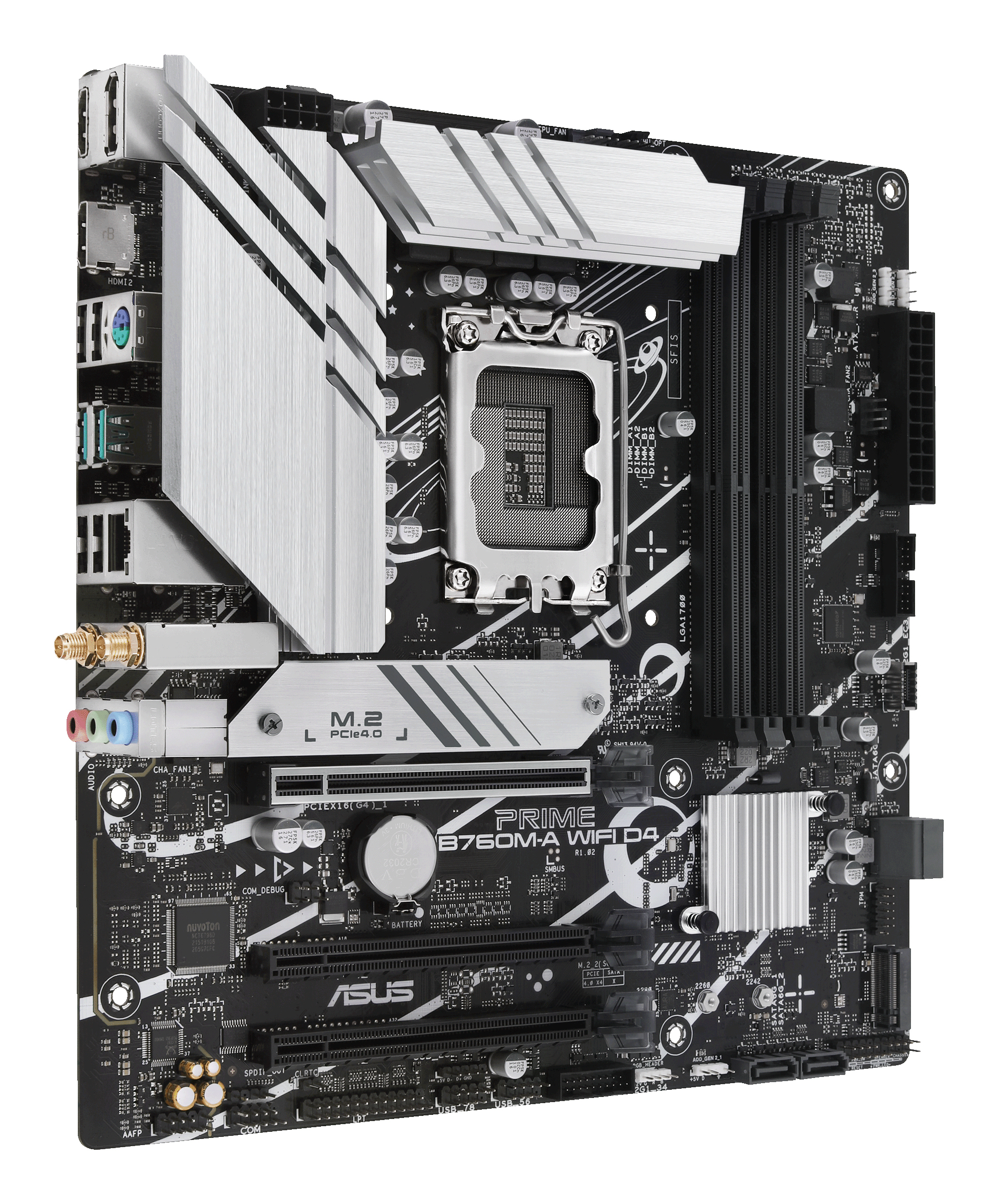

View 3

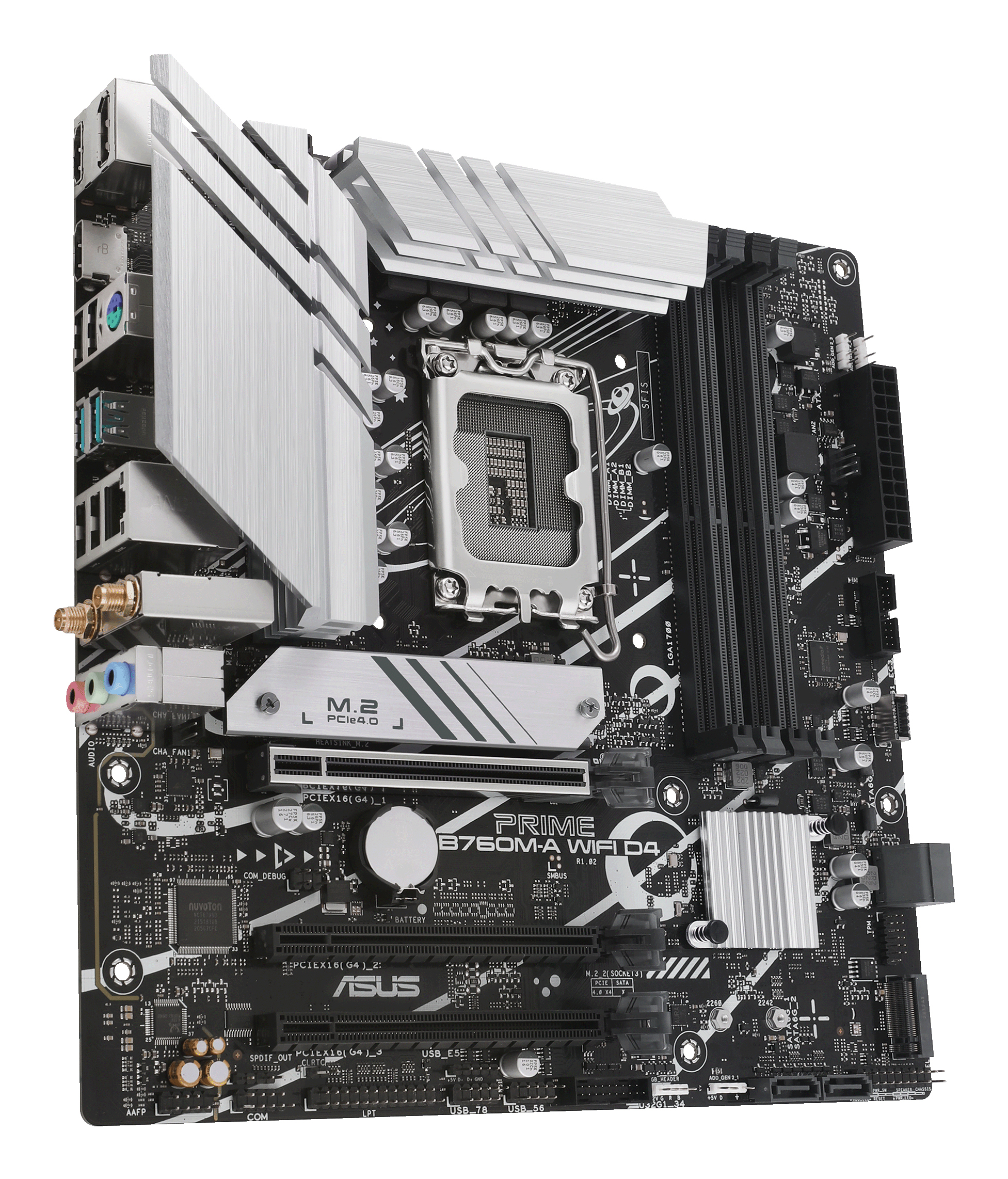

View 4

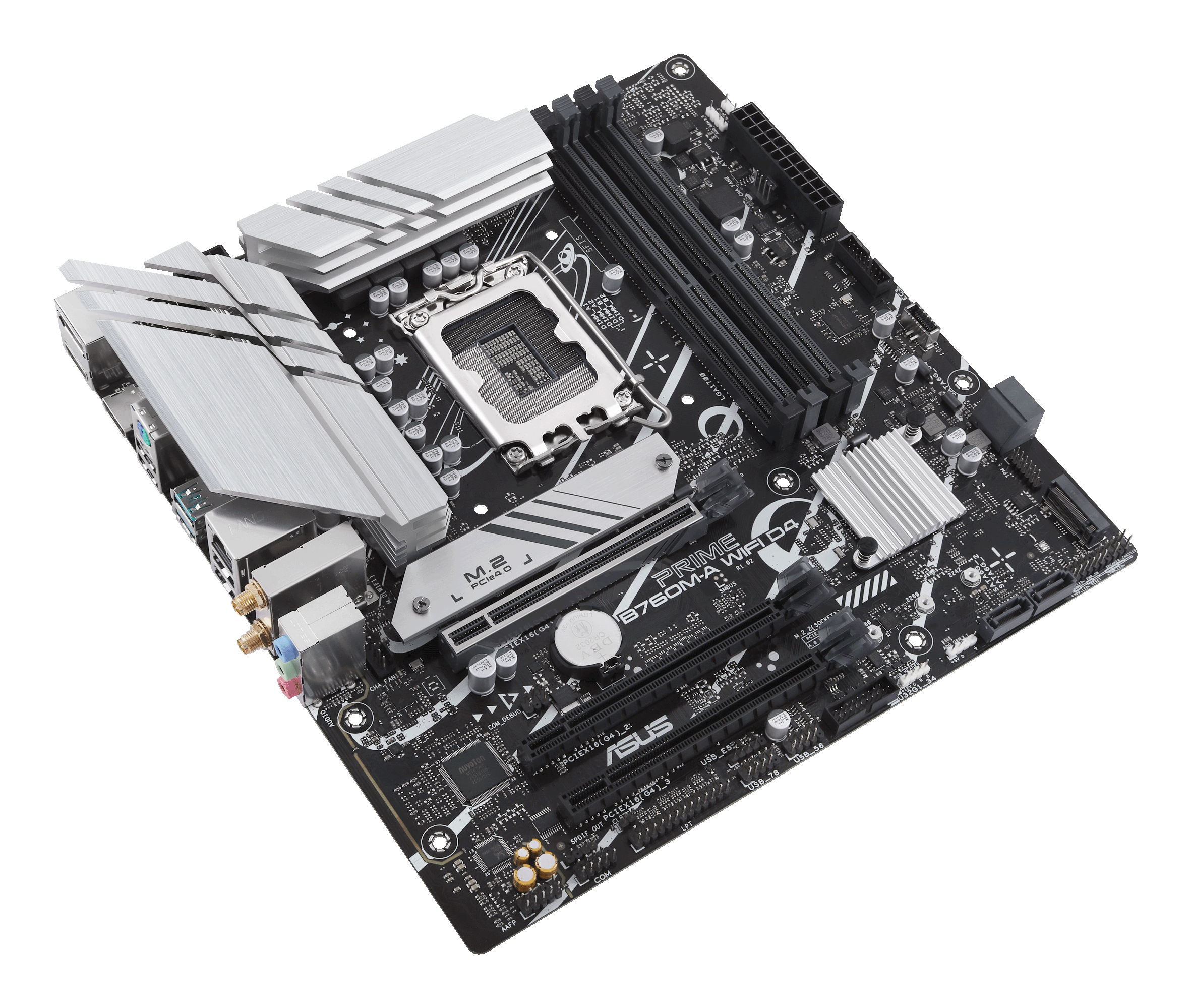

View 5

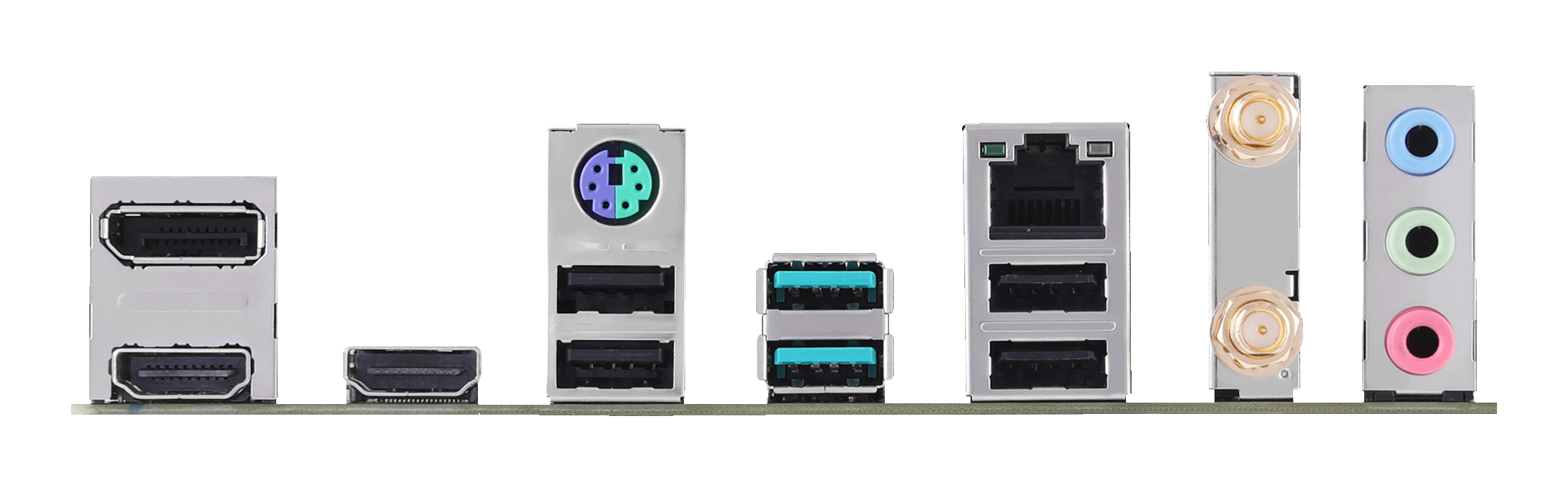

View 6

ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX

£112.94

£135.53 inc. VAT

Low Stock(20)MPN: 90MB1CX0-M1EAY0
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

ASUS PRIME B760M-A WIFI D4
Motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)

Product Overview

AI-generated summary

For £113.24 ex-VAT, the ASUS PRIME B760M-A WIFI D4 is the kind of board that usually makes sense for busy UK office builds: it’s a sensible, mainstream micro-ATX option with Wi‑Fi built in, so you’re less likely to end up chasing dongles or paying extra for add-on cards. ASUS PRIME boards also tend to be fairly painless in day-to-day admin scenarios—good stability for “install it, deploy a few dozen times, and don’t touch it” environments. If you’re building entry-to-midrange Intel systems for desks, small server-ish boxes, or general-purpose workstations, this is a solid “get it done” choice rather than a flashy one.

That said, it’s not the best pick if you’re planning heavy expansion or a long road of upgrades—micro-ATX boards inherently can limit your future options, and PRIME models generally aren’t aimed at enthusiasts or power users. Also, make sure the Wi‑Fi meets your reality: if sites are signal-challenged or you expect lots of high-throughput usage, you may still end up using an Ethernet drop. Overall: good value for predictable business builds; avoid it if you’re spec-hunting for lots of future expansion headroom or you know you’ll need something more “workstation-grade” than a mainstream PRIME board.

Specifications

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilitynon-ECC

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,PCI Express 4.0,SATA III
Number of storage drives supported6
RAID supportY
RAID levels0,1,5,10

Graphics

Parallel processing technology supportNot supported
Maximum resolution3840 x 2160 pixels

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
Number of SATA III connectors4
S/PDIF out connectorY
Front panel audio connectorY

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity2

Network

Ethernet LANY
Ethernet interface type2.5 Gigabit Ethernet
Wake-on-LAN readyY
Wi-FiY
Top Wi-Fi standardWi-Fi 6 (802.11ax)

Features

Motherboard chipsetIntel B760
Audio output channels7.1 channels
Product colourBlack
Component forPC
Motherboard form factorMicro ATX
