APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black
View 1
View 2
View 3
View 4
View 5

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

£915.64

£1098.77 inc. VAT

Out of Stock(0)MPN: AP7822B
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

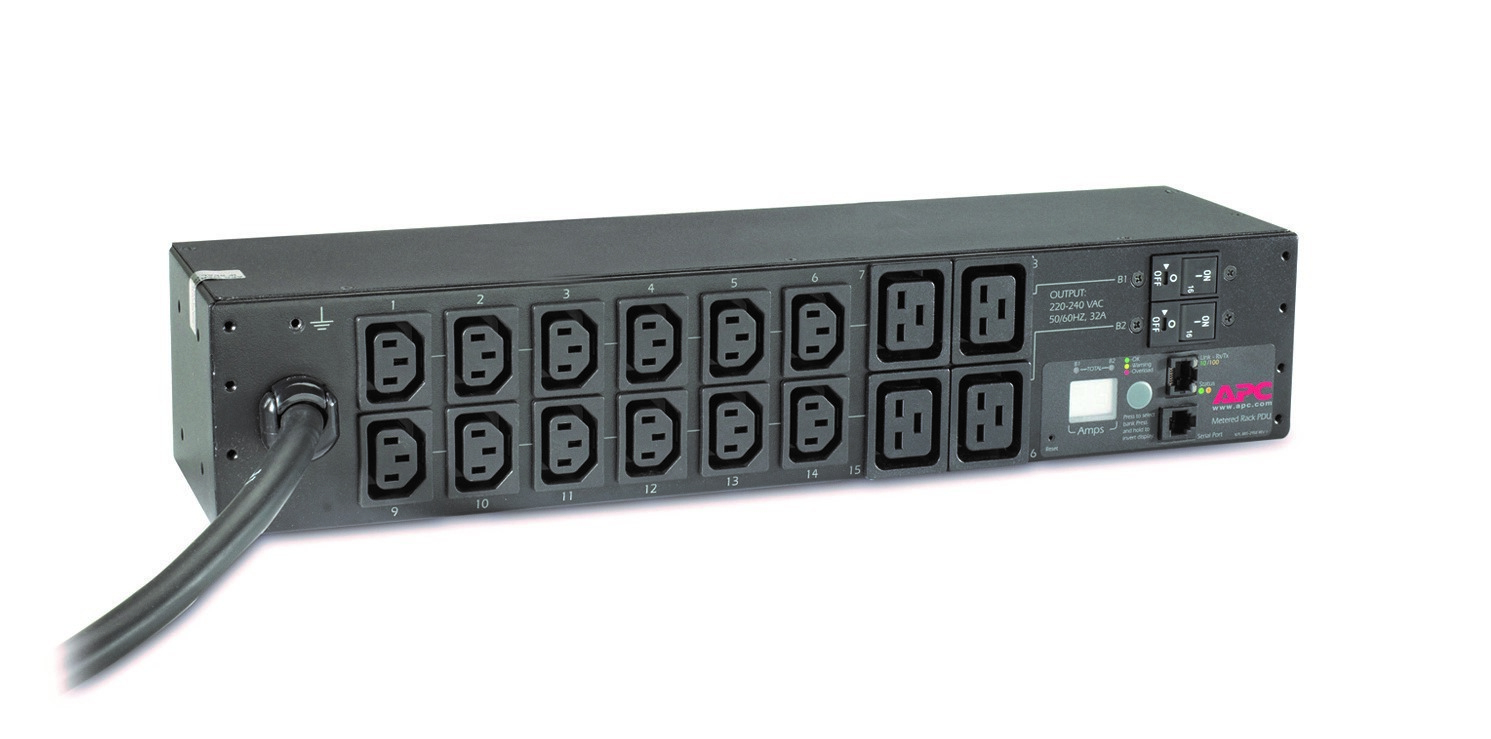

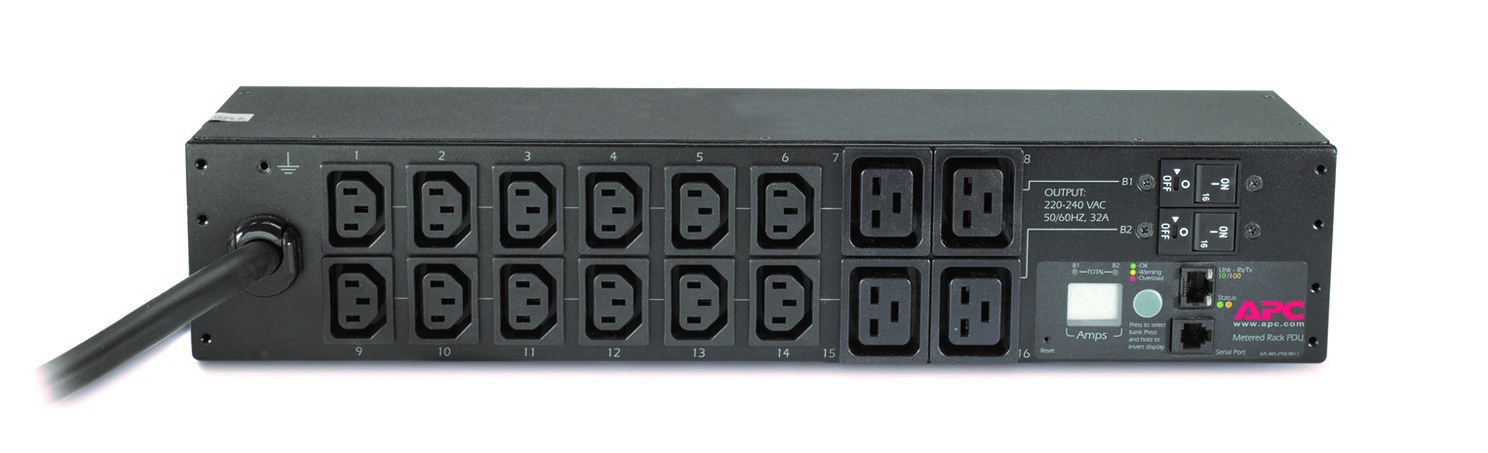

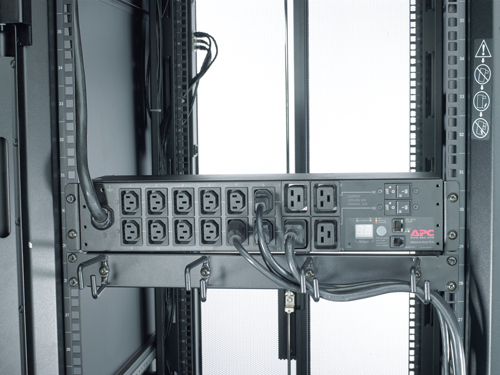

APC Metered Rack PDU AP7822B
Power distribution unit (rack-mountable)
AC 200/208/230 V
input: IEC 60309 32A
output connectors: 16 (power IEC 60320 C13, IEC 60320 C19)
2U
3.66 m cord
for P/N: SCL500RM1U, SCL500RMI1U, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750CUS

Product Overview

AI-generated summary

If you’re spending £915 ex-VAT on an APC 2U PDU, you should already know you’re buying reliability and “it just works” rather than cutting-edge features. APC PDUs in this price band tend to be a safe bet for UK data rooms and server racks where downtime is expensive and cable-management/labeling/fit matters as much as raw power delivery. The main reason to buy is standardisation: APC gear is widely supported, easy to integrate in typical rack builds, and generally holds up well in day-to-day IT environments.

That said, I wouldn’t buy it just because “it’s a PDU” or for casual office racks. Before you commit, sanity-check whether you actually need the particular level of outlet count and form factor this model offers—most wasted PDU money comes from ending up with the wrong density for the equipment you’ll install. Also confirm your rack’s requirements (including physical fit and how you’re planning to route power). If your setup is small, dynamic, or you’re unsure what your final server mix looks like, you may be better off with a simpler/more flexible option—because at this cost, you want the rack to be pretty locked down.

Specifications

Design

PDU typesMetered
TypeSingle-phase
Rack capacity2U
MountingHorizontal/Vertical
Product colourBlack

Ports & interfaces

AC outlets quantity16 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler,C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections12 x C13 4 x C19

Features

LED indicatorsY
Cable length3.66 m

Management features

MonitoringCurrent,Power,Voltage

Power

Nominal input voltage208-230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Load capacity7680 VA
Maximum input current per phase32 A

Certificates

Compliance certificatesRoHS
CertificationC-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95 %
Storage relative humidity (H-H)5 - 95 %

Weight & dimensions

Width444 mm
Depth112 mm
Height88 mm
Weight3360 g
