ShopRacking & CabinetsAPC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19
APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19
View 1
View 2
View 3

APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

£1569.49

£1883.39 inc. VAT

Out of Stock(0)MPN: AP8481
🚚 Next-day delivery £4.95
Quantity:1
1
2
3
4
5
6
7
8
9
10+

Key Features

APC Metered-by-Outlet Rack PDU 2G
Power distribution unit (rack-mountable)
AC 400 V
3-phase
RS-232
output connectors: 24
0U
1.8 m cord

Product Overview

AI-generated summary

If you’re trying to get serious about power visibility in a rack, this APC metered-by-outlet ZeroU PDU is the kind of “quietly useful” purchase you won’t regret. Being able to see outlet-level consumption makes incident response way faster (you can spot a misbehaving server or a dodgy maintenance device without playing guess-the-blame game), and the 0U form factor keeps your rack neat—no wrestling with extra shelf space. At £1,569.49 ex-VAT, it’s not impulse-buy cheap, but the price starts to make sense if you’ve got multiple critical loads and you’re tired of relying on generic breakers or guesswork.

Who it suits best: operations teams, data closets, and mixed-environment server racks where uptime and troubleshooting matter, and where someone will actually act on the metering data. It’s overkill if you just need basic power distribution for a couple of low-power devices, or if your processes don’t include monitoring/alerts—because then it becomes “an expensive power strip.” In short: buy it when you’ll use the measurement to manage risk and capacity; skip it if you only care about “it powers things on” rather than managing what’s happening.

Specifications

Design

PDU typesMetered,Metered-by-outlet
Rack capacity0U
MountingVertical
Product colourBlack

Ports & interfaces

AC outlets quantity24 AC outlet(s)

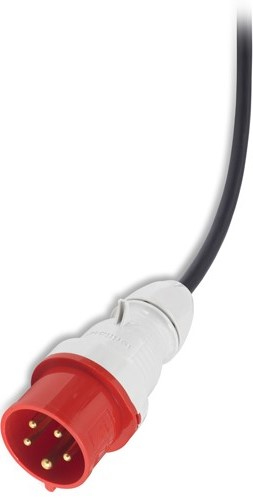

Power plugIEC309
AC outlet typesC13 coupler,C19 coupler
Input connection typeIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections21 x C13 & 3 x C19

Features

LED indicatorsY
Cable length1.83 m

Management features

MonitoringCurrent,Power,Voltage
Management platformWeb, SNMP, Telnet

Power

Nominal input voltage400 V
AC input frequency50 - 60 Hz
Nominal output voltage230 V
Load capacity11040 VA
Maximum input current per phase16 A

Certificates

Compliance certificatesRoHS
CertificationEN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE, REACH

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95 %
Storage relative humidity (H-H)5 - 95 %
Operating altitude0 - 15000 m

Weight & dimensions

Width56 mm
Depth51 mm
Height1829 mm
Weight8210 g
